Eclipse GS, Automatic Trans
>>
Repair and Diagnosis
>>
Engine Performance
>>
Tune-Up
>>
Ignition System
>>
Crankshaft Position Sensor
>>
Removal And Installation <2.4L Engine>
Removal And Installation <2.4L Engine>

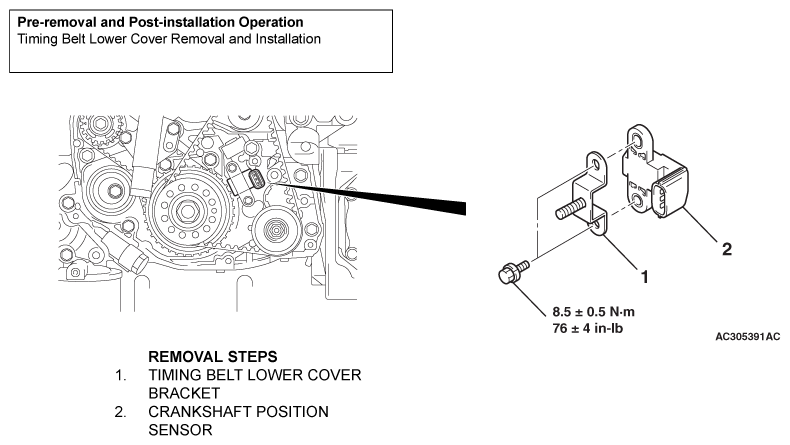

Fig 1: Removal/Installation Of Crankshaft Position Sensor With Torque Specifications (2.4L Engine)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
