Removal And Installation <3.8L Engine>

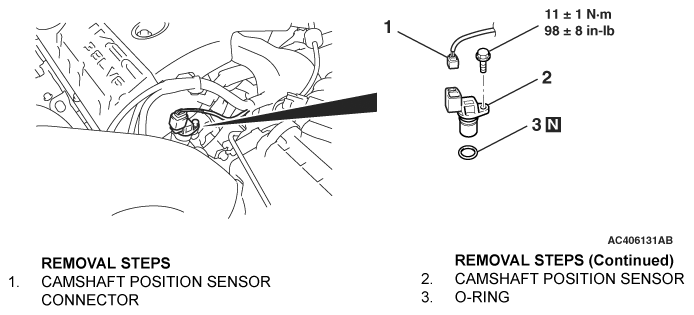

Fig 1: Removal/Installation Of Camshaft Position Sensor With Torque Specifications (3.8L Engine)

G06692025

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
