Removal And Installation <2.4L Engine>

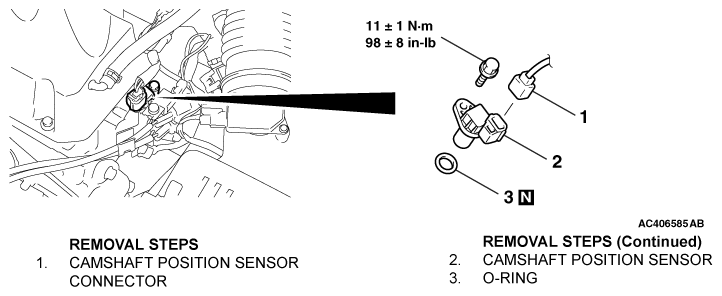

Fig 1: Removal/Installation Of Camshaft Position Sensor With Torque Specifications (2.4L Engine)

G06692024

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
