<2.4L Engine>

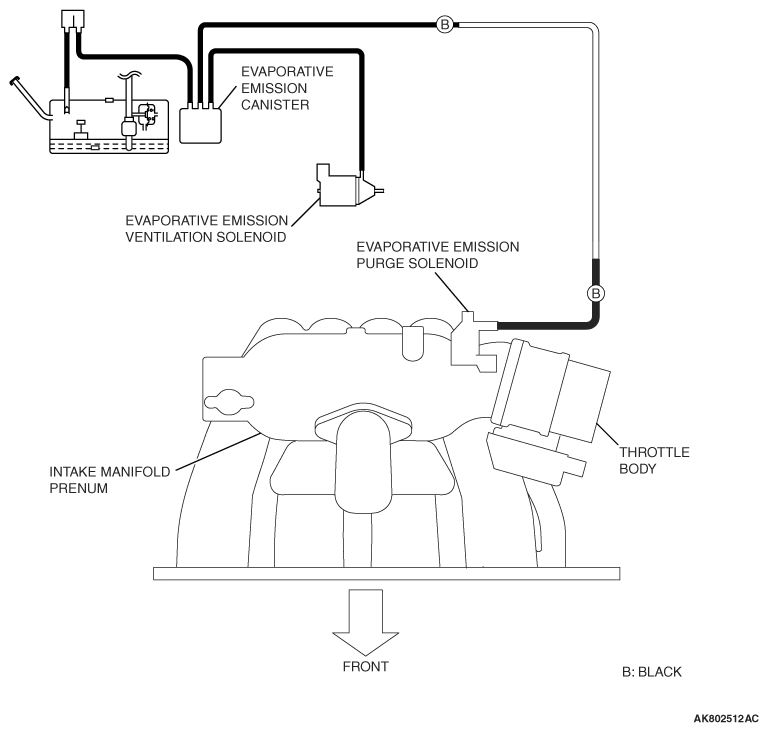

Fig 1: Vacuum Hose Routing - 2.4L Engine

G06684450

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
