Home >> Mitsubishi >> 2012 >> Eclipse GS, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> System >> Emission Control System >> Exhaust Gas RECIRCULATION (EGR) System >> Removal And Installation <2.4L Engine> >> Notes

Removal And Installation <2.4L Engine>: Notes

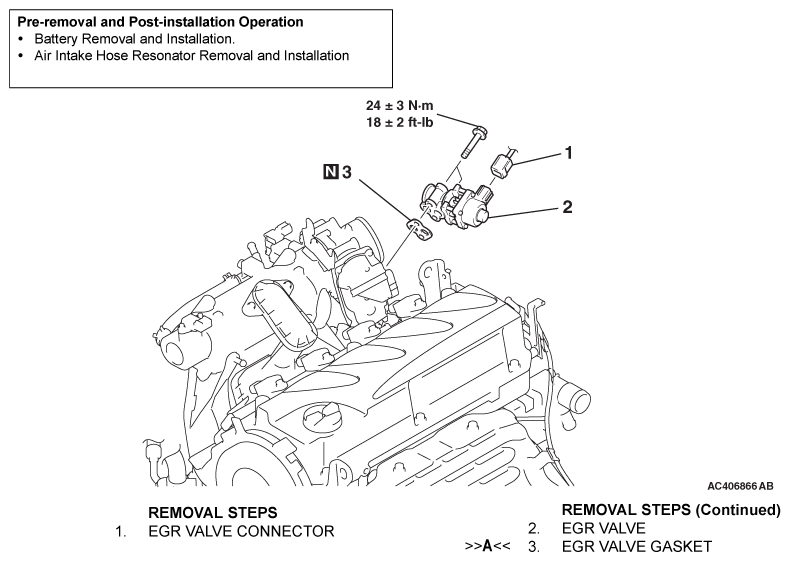

Fig 1: EGR Valve Removal And Installation With Torque Specifications (2.4L Engine)
G06684472Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
