Auto-Cruise Control Switch Check
- Remove the steering wheel assembly. (Refer to STEERING WHEEL ).

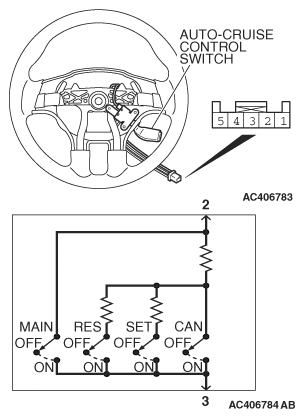

- Measure the resistance between terminal 2 and terminal 3 when each of the "COAST/SET", "ACC/RES", "CANCEL" and "CRUISE" (MAIN) switches is pressed. If values measured at the time each switch is pressed correspond to those in the table below, the resistance values are correct.SWITCH SPECIFICATION
SWITCH POSITION SPECIFIED CONDITION "CRUISE" (MAIN) switch "OFF" Open circuit "CRUISE" (MAIN) switch "ON" Continuity (Less than 2 ohms) "CANCEL" switch ON Approximately 100 Ω "ACC/RES" switch ON Approximately 887 Ω "COAST/SET" switch ON Approximately 300 Ω
