Home >> Mitsubishi >> 2011 >> RVR GT >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Engine Overhaul >> Oil Pump Chain >> Removal And Installation >> Notes

Removal And Installation: Notes

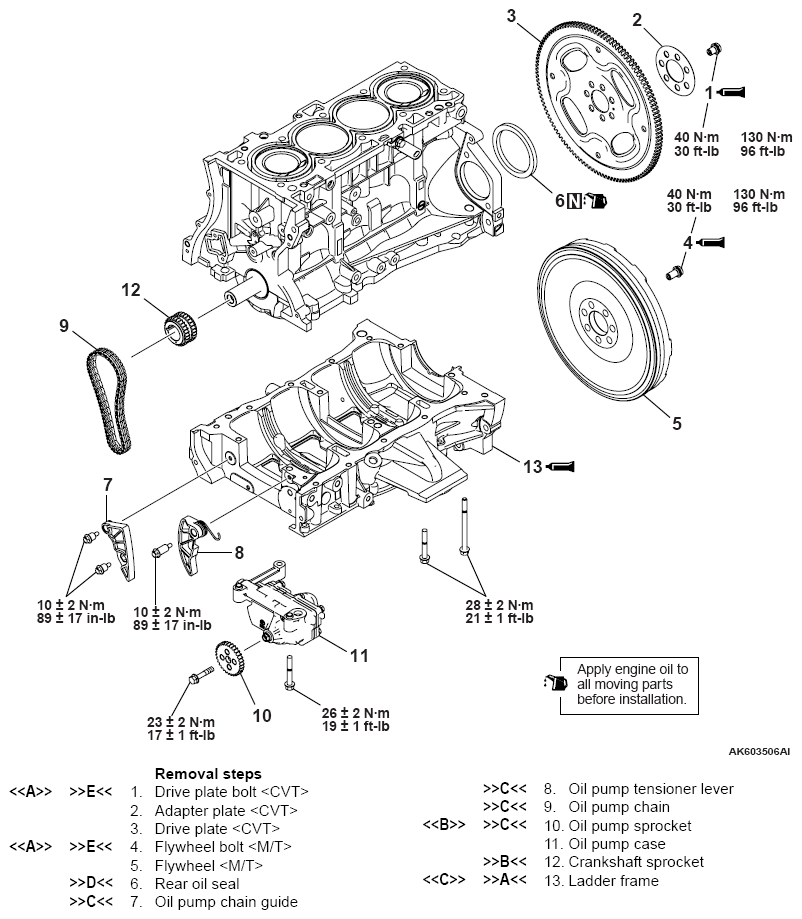

Fig 1: Oil Pump Chain Replacement Components With Torque Specifications
G07046166Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
