Repair and Diagnosis
>>
Body & Frame
>>
Exterior/Interior Trim
>>
Splash Shield
>>
Removal And Installation
Removal And Installation

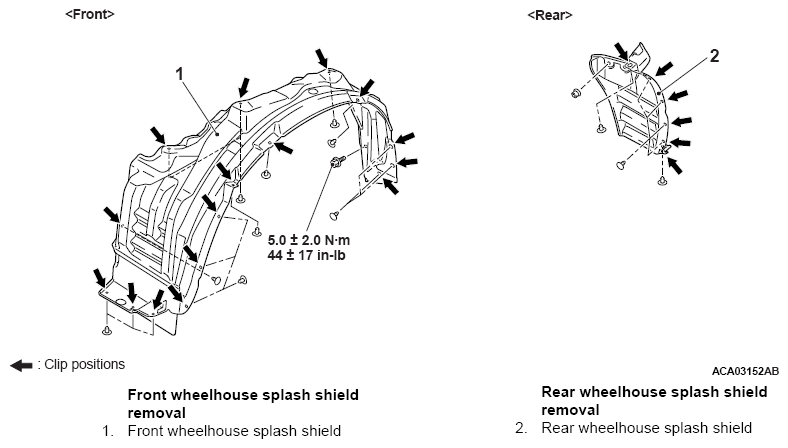

Fig 1: Removing/Installing Splash Shield With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
