Home >> Mitsubishi >> 2011 >> Outlander XLS, FWD >> Repair and Diagnosis >> Suspension >> Wheel Alignment >> Front Suspension & Wheel Alignment >> Strut Assembly >> Disassembly And Assembly >> Notes

Disassembly And Assembly: Notes

NOTE: For additional service information, refer to TSB APPLICATION OF SILICONE GREASE ADDED - SERVICE MANUAL REVISION .

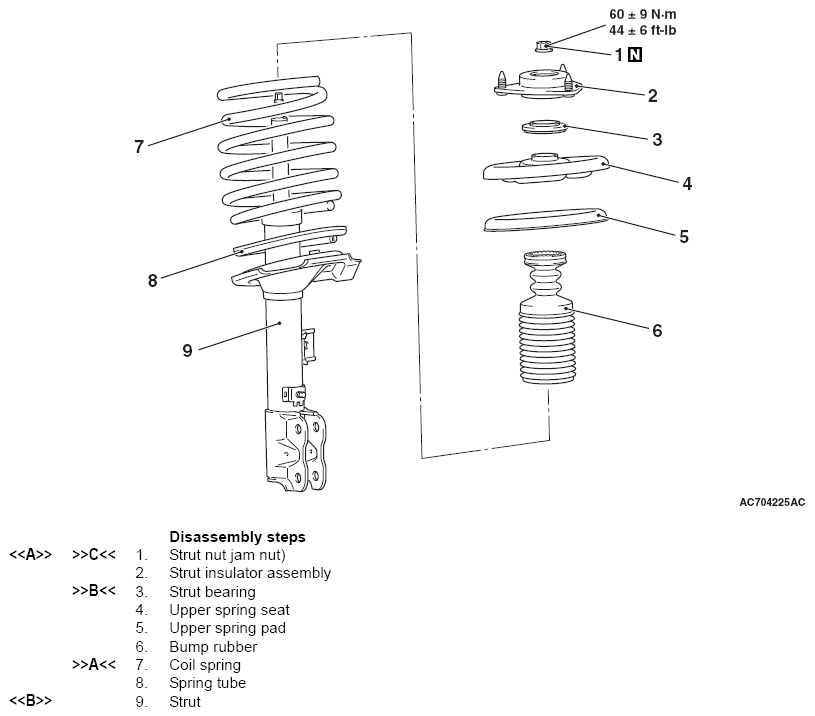

Fig 1: Strut Assembly Disassembly And Assembly With Torque Specifications
G07041739Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
