Removal And Installation < 3.0L Engine >: Notes

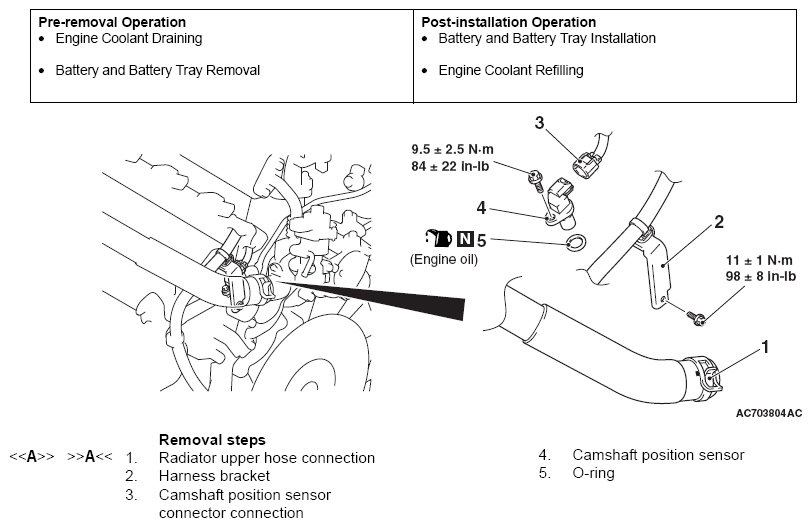

Fig 1: Camshaft Position Sensor Removal And Installation - 3.0L Engine With Torque Specifications

G07042547

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
