Removal And Installation < 2.4L Engine >
>>
Notes
Removal And Installation < 2.4L Engine >: Notes

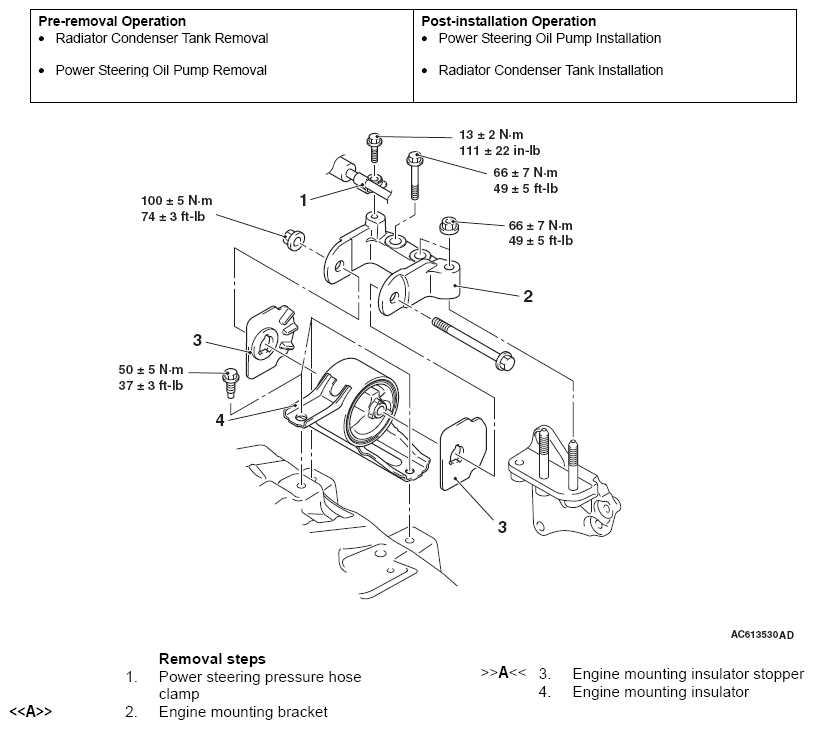

Fig 1: Engine Mounting Removal And Installation With Torque Specifications - 2.4L Engine
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
