Removal And Installation < 3.0L Engine >
Removal And Installation < 3.0L Engine >

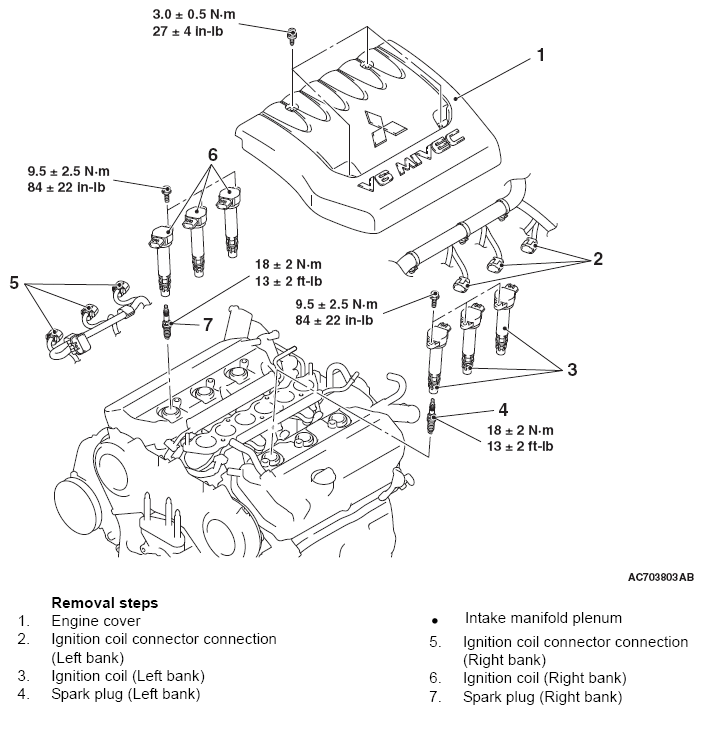

Fig 1: Ignition Coil Removal And Installation - 3.0L Engine With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
