Disassembly And Reassembly
>>
< 3.0L Engine >
< 3.0L Engine >

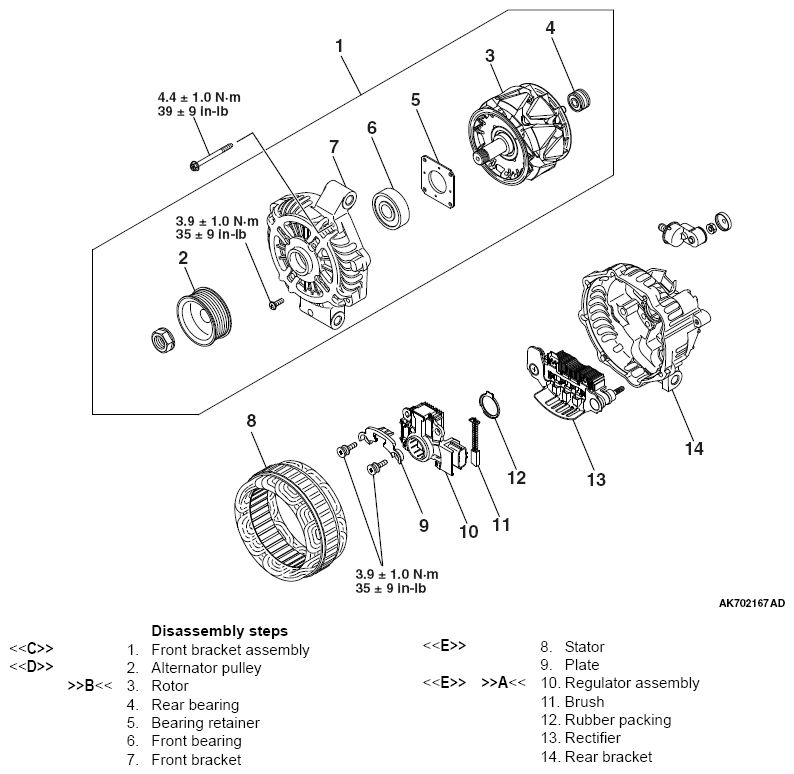

Fig 1: Disassembled View Of Generator With Torque Specifications (3.0L Engine)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
