Selector "P" Position-Linked Door Unlocking Function

When the selector lever is shifted to the "P" (parking) position with the ignition switch turned ON, all the doors (including the liftgate) will be unlocked automatically, improving passengers' convenience for getting out. Using a customization function, the selector "P" position-linked door unlocking function can be switched (Refer to CUSTOMIZATION FUNCTION  ).

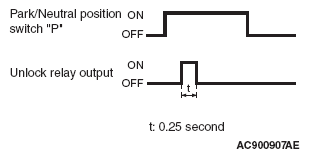

Fig 1: Park/Neutral Position Switch P And Unlock Relay Output Timing Chart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

When the selector lever is shifted to the P position with the ignition switch turned ON, the transaxle range switch "P" turns ON, ETACS-ECU turns the unlock relay output ON for 0.25 seconds to unlock all the doors (including the liftgate).
