Mitsubishi
>>
2011
>>
Outlander XLS, AWD
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Entertainment Systems
>>
USB Box
>>
Troubleshooting
>>
Removal And Installation
Removal And Installation

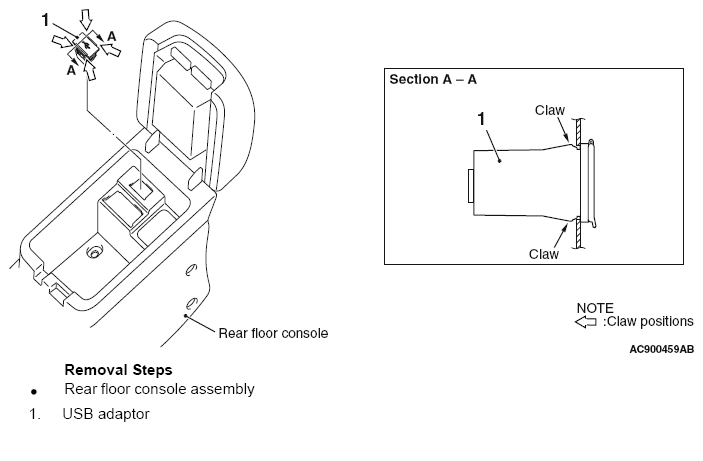

Fig 1: Removing/Installing USB Adaptor
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

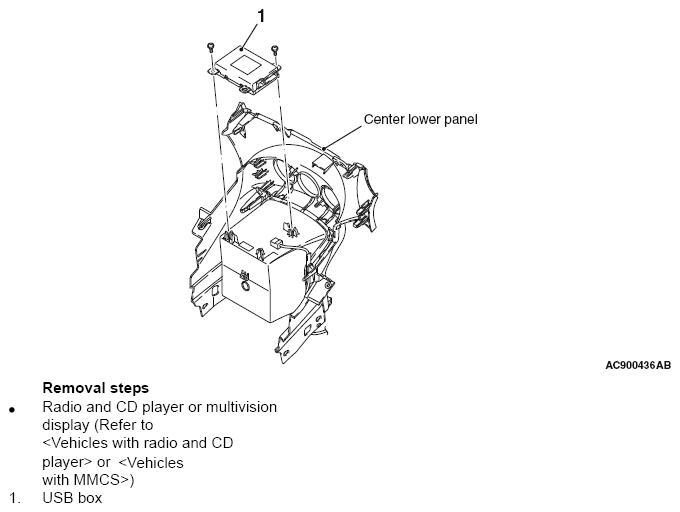

Fig 1: Removing/Installing USB Box
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

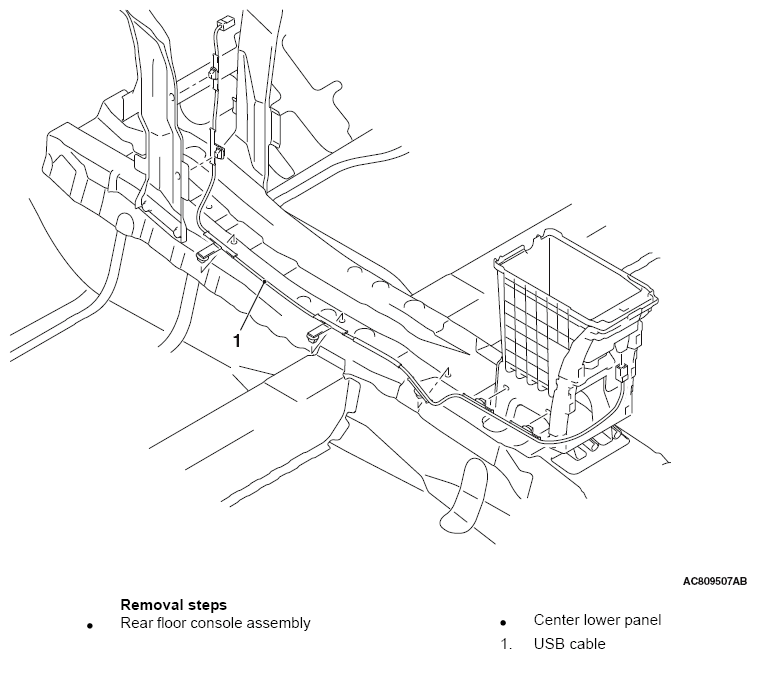

Fig 1: Removing/Installing USB Cable
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
