Disassembly And Reassembly: Notes

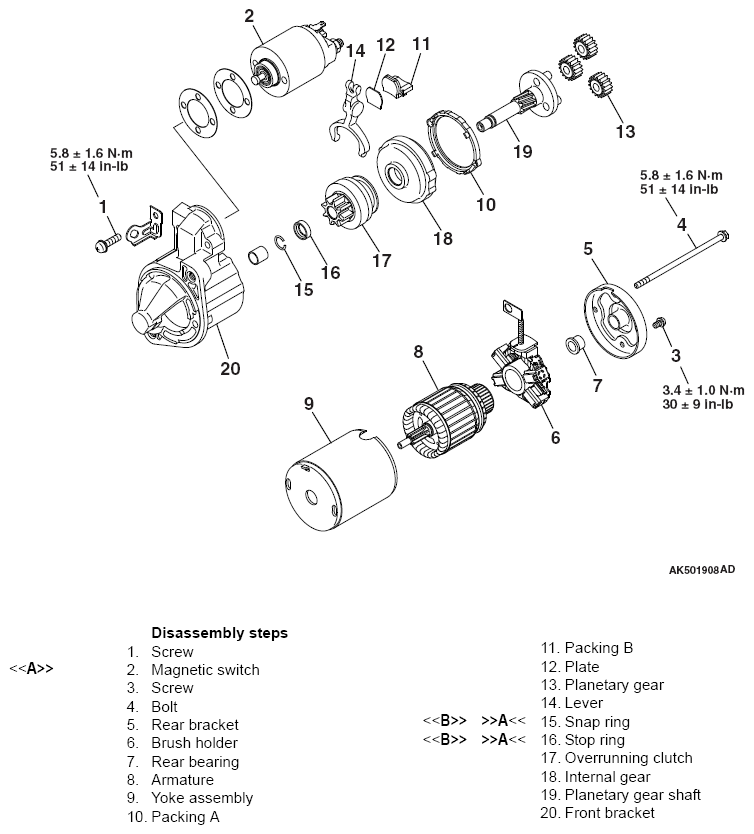

Fig 1: Disassembled View Of Starter With Torque Specifications

G07043770

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
