Removal And Installation: Notes

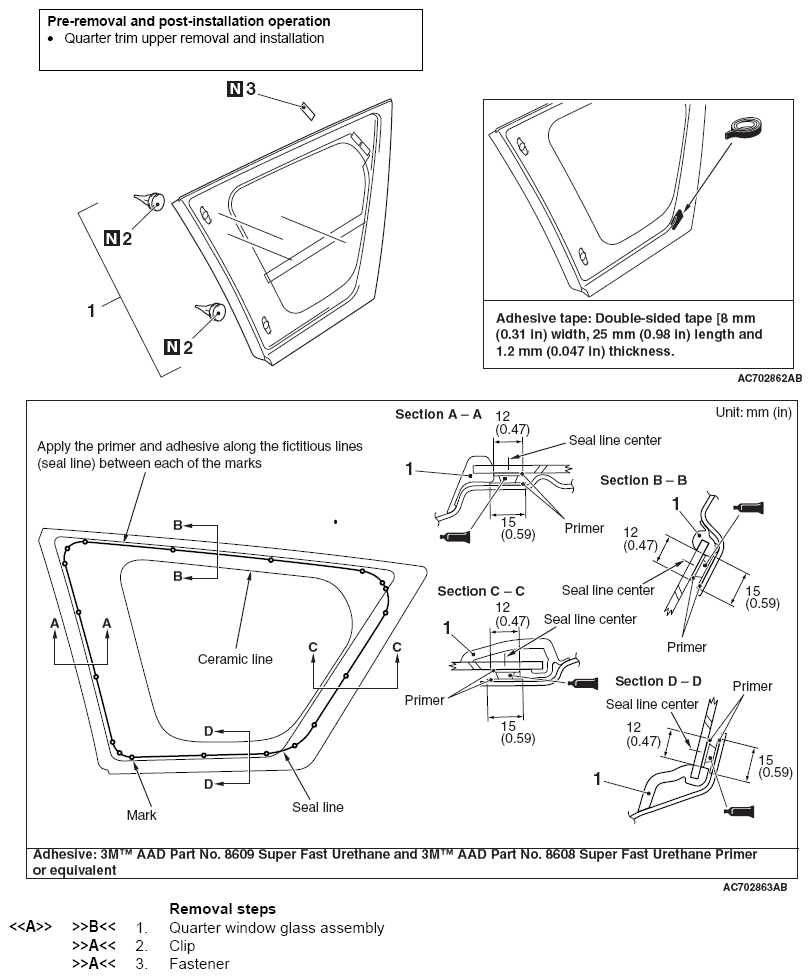

Fig 1: Identifying Quarter Window Glass Primer And Adhesive Applying Areas
G07041883Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
