14. Engine Coolant: Change

Check the cooling system parts such as the radiator, heater and oil cooler hoses, thermostat and their connections for leakage and damage.

WARNING: When removing the radiator cap, use care to avoid contact with hot engine coolant or steam. Place a shop towel over the radiator cap and turn the radiator cap counterclockwise a little to let the pressure escape through the vinyl tube. After relieving the steam pressure, remove the radiator cap by slowly turning it counterclockwise.
  1. Drain the engine coolant from the radiator, heater core and engine after unplugging the radiator drain plug and removing the radiator cap.
  2. Disconnect the cooling water line hose and drain the water jacket <2.4L>.

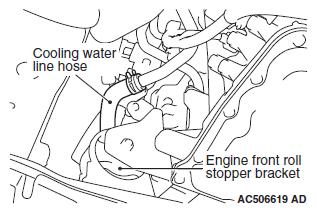

    Fig 1: Identifying Cooling Water Line Hose And Engine Front Roll Stopper Bracket
    G07042477Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. Disconnect the water feed hose B and drain the coolant in the water jacket <3.0L>.

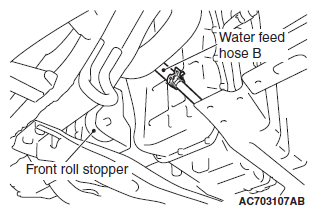

    Fig 2: Identifying Front Roll Stopper And Water Feed Hose B
    G07042478Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  4. Drain the water in the water jacket by unplugging the drain plug of the cylinder block.
    Fig 3: Locating Cylinder Block Drain Plug (2.4L Engine - Exhaust Side)
    G07042479Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

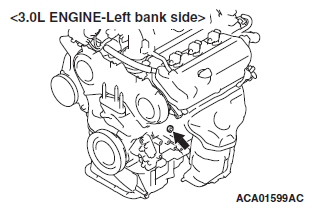

    Fig 4: Locating Cylinder Block Drain Plug (3.0L Engine - Left Bank Side)
    G07042480Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

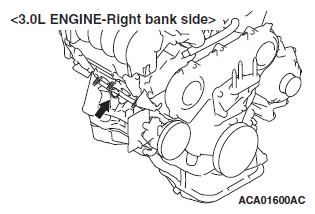

    Fig 5: Locating Cylinder Block Drain Plug (3.0L Engine - Right Bank Side)
    G07042481Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  5. Remove the radiator condenser tank assembly and drain the engine coolant.
  6. Connect the cooling water line hose <2.4L>.
  7. Connect the water feed hose B <3.0L>.
  8. Replace the cylinder block drain plug gasket, and tighten the drain plug to the specified torque.

    Tightening torque: 39 ± 3 N.m (29 ± 2 ft-lb) 2.4L

    Tightening torque: 29 ± 5 N.m (29 ± 2 ft-lb) 3.0L Left bank side

    Tightening torque: 140 ± 5 N.m (29 ± 2 ft-lb) 3.0L Right bank side

  9. Install the radiator condenser tank assembly.
  10. Securely tighten the radiator drain plug.
  11. Assemble the radiator condenser tank assembly.
    Fig 6: Identifying Cylinder Block Drain Plug And Gasket
    G07028269Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    CAUTION: Do not use alcohol or methanol anti-freeze or any engine coolants mixed with alcohol or methanol anti-freeze. The use of an improper anti-freeze can cause corrosion of the aluminum components.
    12. NOTE: For how to use special tool MB991871, refer to its manufacturer's instructions .

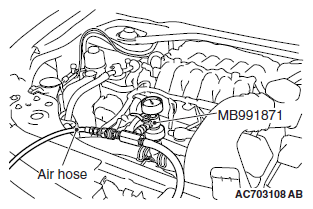

    Fig 7: Refilling Engine Coolant Using Special Tool MB991871
    G07042483Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  12. Use special tool MB991871 to refill the engine coolant up to the top of the radiator port.

    Recommended antifreeze: DIA QUEEN SUPER LONG LIFE COOLANT PREMIUM or equivalent*

    *: similar high quality ethylene glycol based non-silicate, non-amine, non-nitrate and non-borate coolant with long life hybrid organic acid technology

    Quantity: 9.5 dm 3  (10.0 quarts) Automatic Transaxle

    Quantity: 7.5 dm 3  (7.9 quarts) CVT

    [includes 0.65 dm 3  (0.69 quarts) in the radiator condenser tank]

  13. Reinstall the radiator cap securely.
  14. Start the engine and let it warm up until the thermostat opens.
  15. After repeatedly revving the engine up to 3000 RPM several times, stop the engine
  16. Remove the radiator cap after the engine has cooled, and pour in coolant up to the brim. Reinstall the radiator cap.
    17. CAUTION: Do not overfill the radiator condenser tank assembly.
  17. Add coolant to the radiator condenser tank assembly between the "FULL" and "LOW" mark if necessary.
