Home >> Mitsubishi >> 2011 >> Outlander ES, AWD >> Repair and Diagnosis >> Engine Mechanical >> Engine Intake System And Exhaust System >> Intake Manifold >> Removal And Installation < 2.4L Engine > >> Notes

Removal And Installation < 2.4L Engine >: Notes

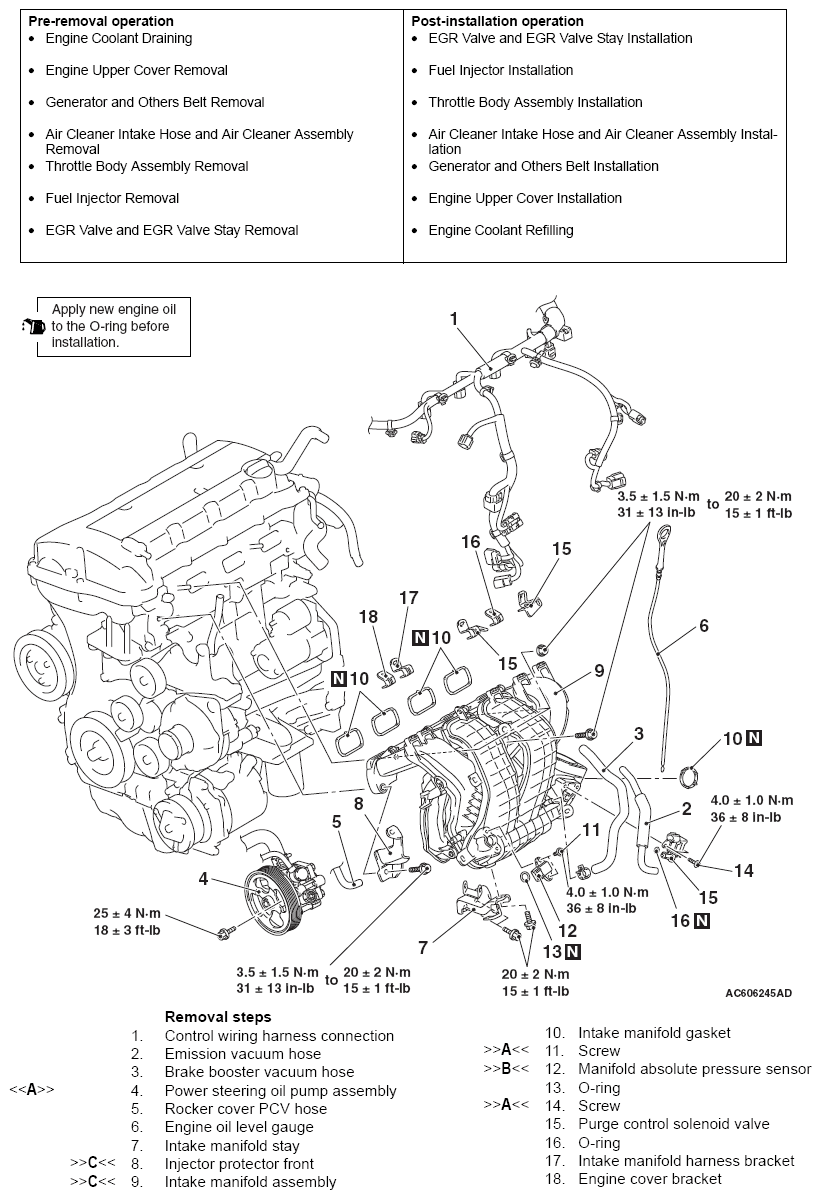

Fig 1: Removing/Installing Intake Manifold With Torque Specifications (2.4L Engine)

G07043681

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
