Keyless Operation System (Kos)
>>
General Information
>>
Control Of Locking Operation
Control Of Locking Operation

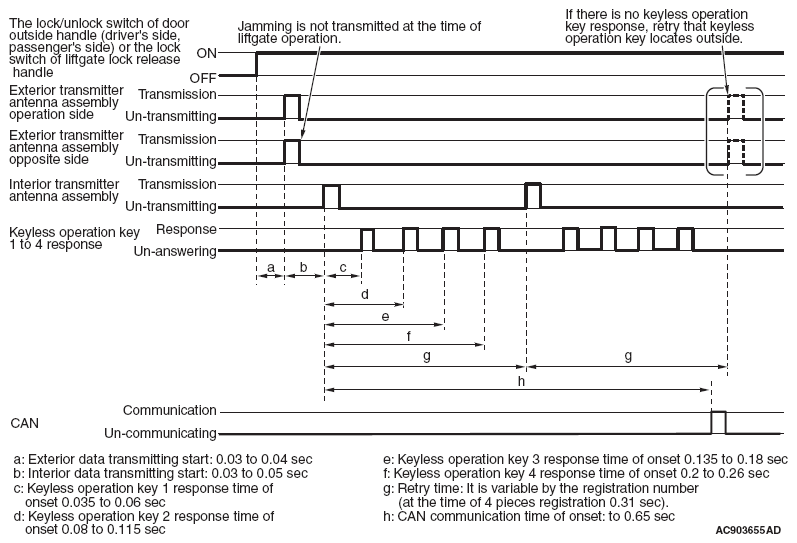

Fig 1: Control Of Locking Operation Reference Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
