Disassembly And Assembly: Notes

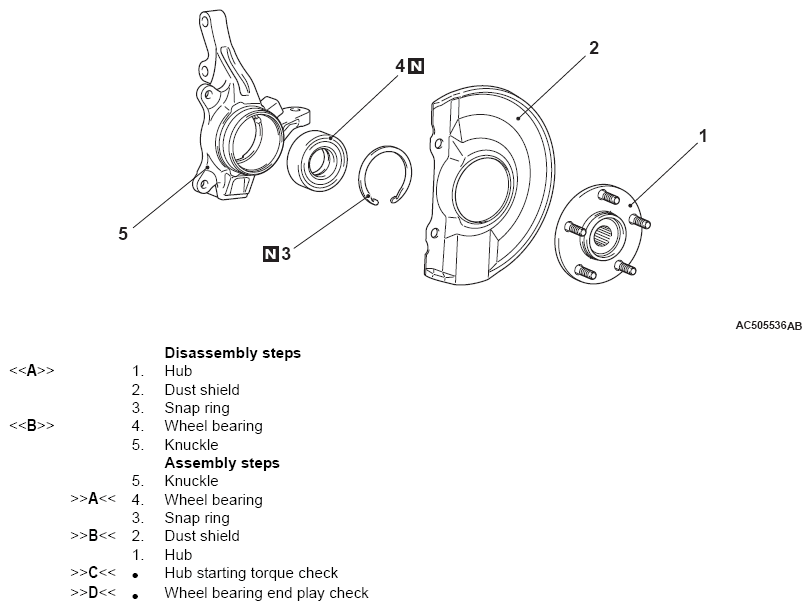

Fig 1: Disassembled View Of Wheel Bearing

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB990326: Preload Socket
• MB990685: Torque Wrench
• MB990890: Rear Suspension Bushing Base
• MB990935: Installer Adapter
• MB990938: Installer Bar
• MB991000: Spacer
• MB991017: Front Hub Remover and Installer
• MB991355: Knuckle Arm Bridge
• MB991388: Bush Remover Base
• MB991576: Base
• MB992150: Oil Seal Installer
• MB992250: Knuckle Arm Bridge Attachment
• MD999528: Adapter
• MD998801: Remover
• MD998812: Installer Cap
• MD998813: Installer
