Removal And Installation

CAUTION: Before removing the front seat assembly, refer to SERVICE PRECAUTIONS , SIDE-AIRBAG MODULE(S) < EXCEPT RALLIART > and SIDE-AIRBAG MODULE(S) < RALLIART > .

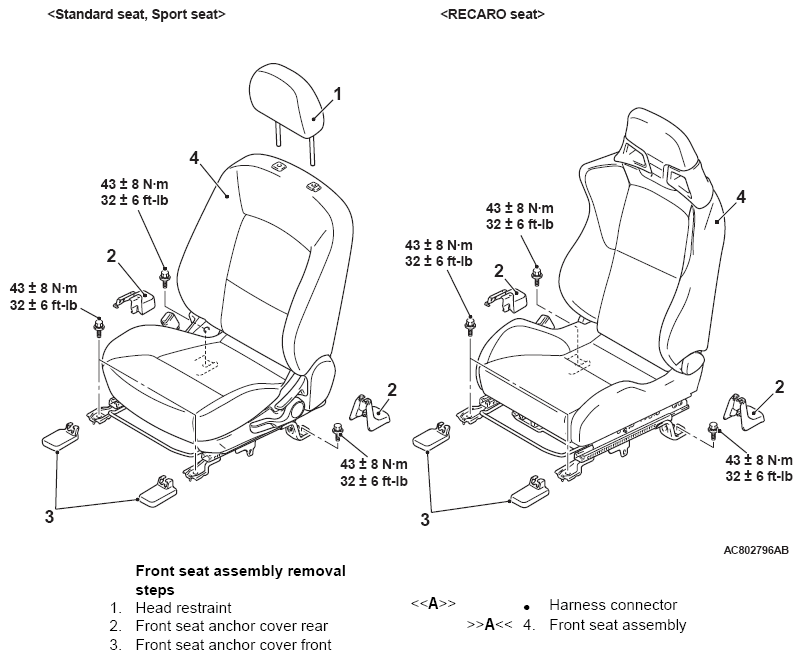

Fig 1: Removing/Installing Front Seat Assembly Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
