Lancer GTS, 4D Hatchback, Standard
>>
Repair and Diagnosis
>>
Restraints
>>
Passive Restraints
>>
Interior - Except Lancer Evolution
>>
Instrument Lower Panel
>>
Removal And Installation
Removal And Installation

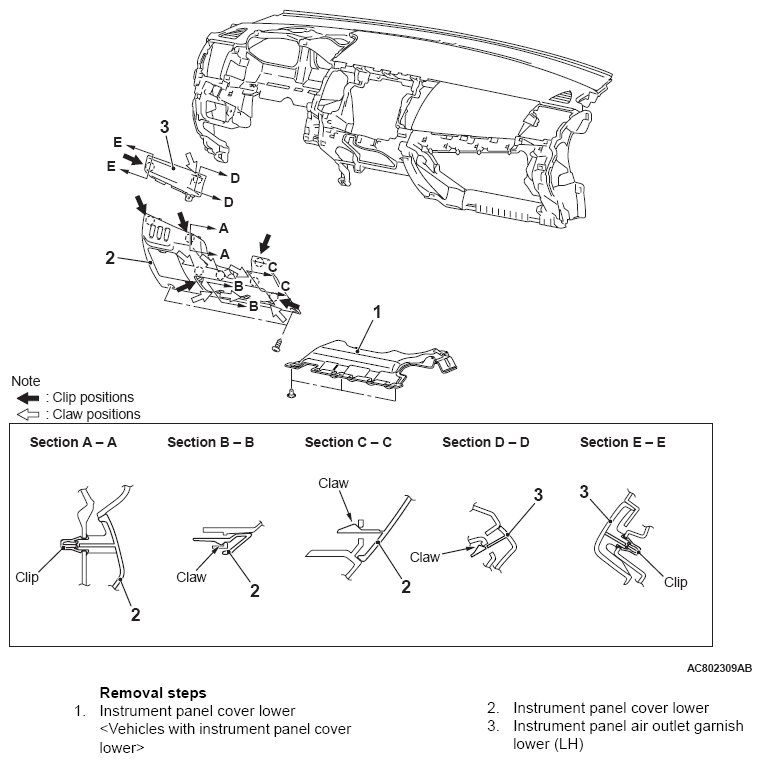

Fig 1: Removing/Installing Instrument Lower Panel Components
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
