Removal And Installation

CAUTION:
  • Do not use impact wrench.
  • Do not drop or shock the G and yaw rate sensor.
  • When the G and yaw rate sensor is replaced or reinstalled, always carry out calibration to make ASC-ECU learn the neutral point (Refer to G AND YAW RATE SENSOR CALIBRATION  ).

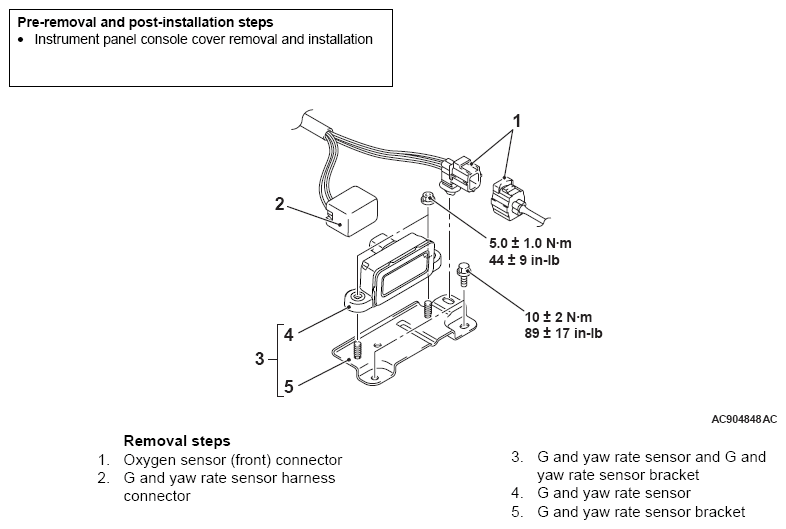

    Fig 1: G And Yaw Rate Sensor Components With Torque Specification
    G07032637Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
