Removal And Installation: Notes

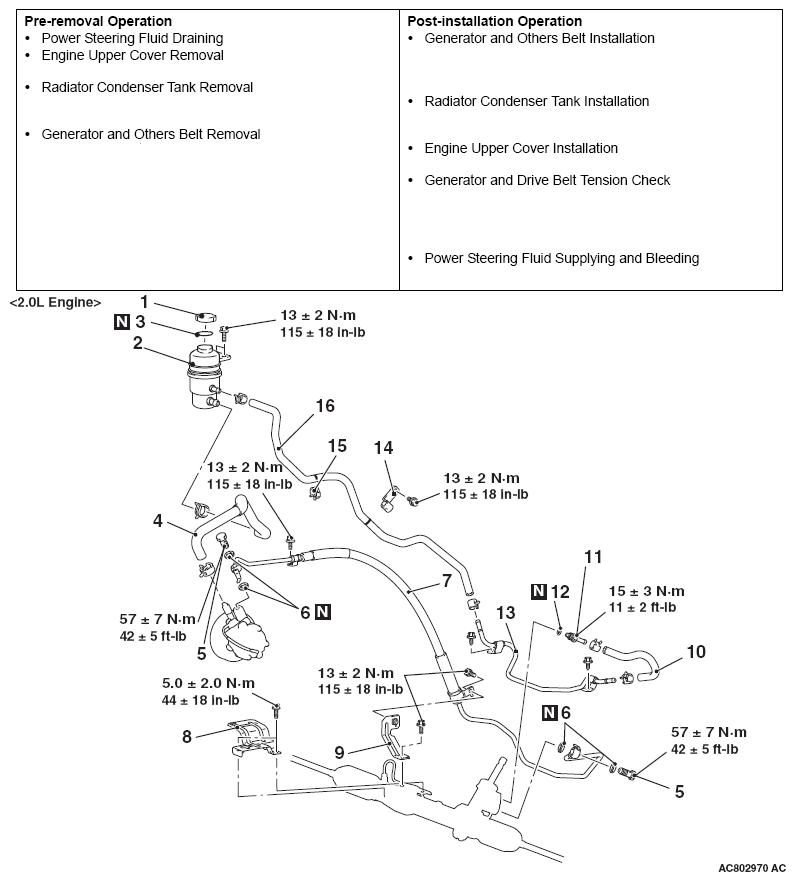

Fig 1: Exploded View Of Power Steering Hoses With Torque Specifications (2.0L Engine)
G06472605Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

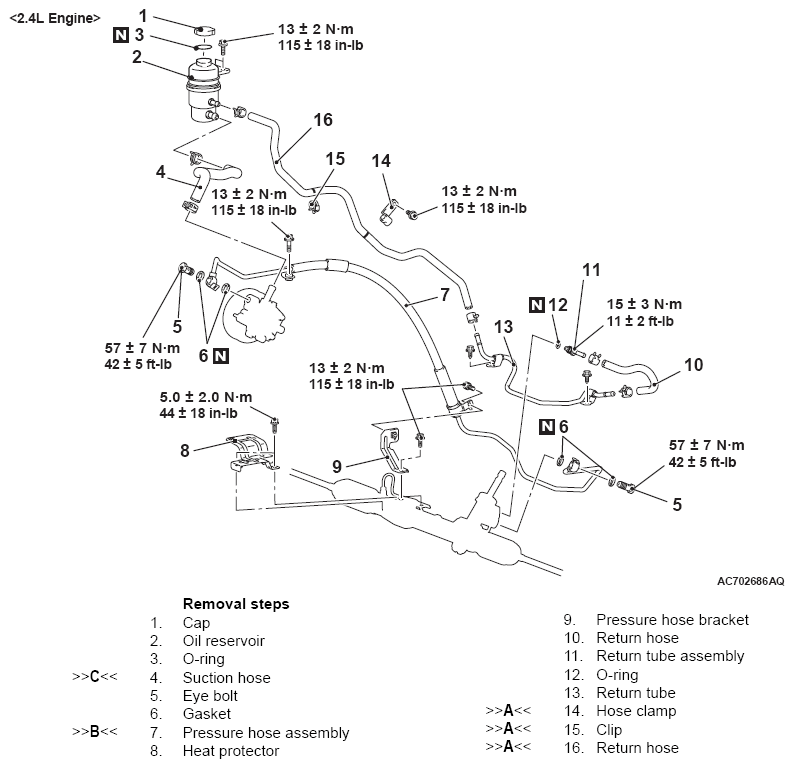

Fig 2: Exploded View Of Power Steering Hoses With Torque Specifications (2.4L Engine)
G07032730Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
