< CVT >

  1. Turn the ignition switch to the position other than the LOCK (OFF) position.
  2. Remove the shift lock forced release switch cover shown in the figure. While pressing the shift lock forced release switch with a screwdriver or a similar tool, move the selector lever.

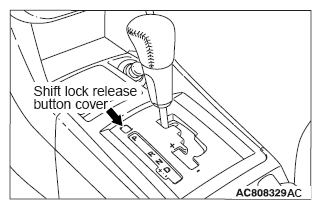

    Fig 1: Identifying Shift Lock Release Button Cover
    G07028209Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
