DTC U0231: Lighting control sensor LIN timeout <Vehicles with auto light function>: Notes

CAUTION: Before replacing the ECU, ensure that the communication circuit is normal.

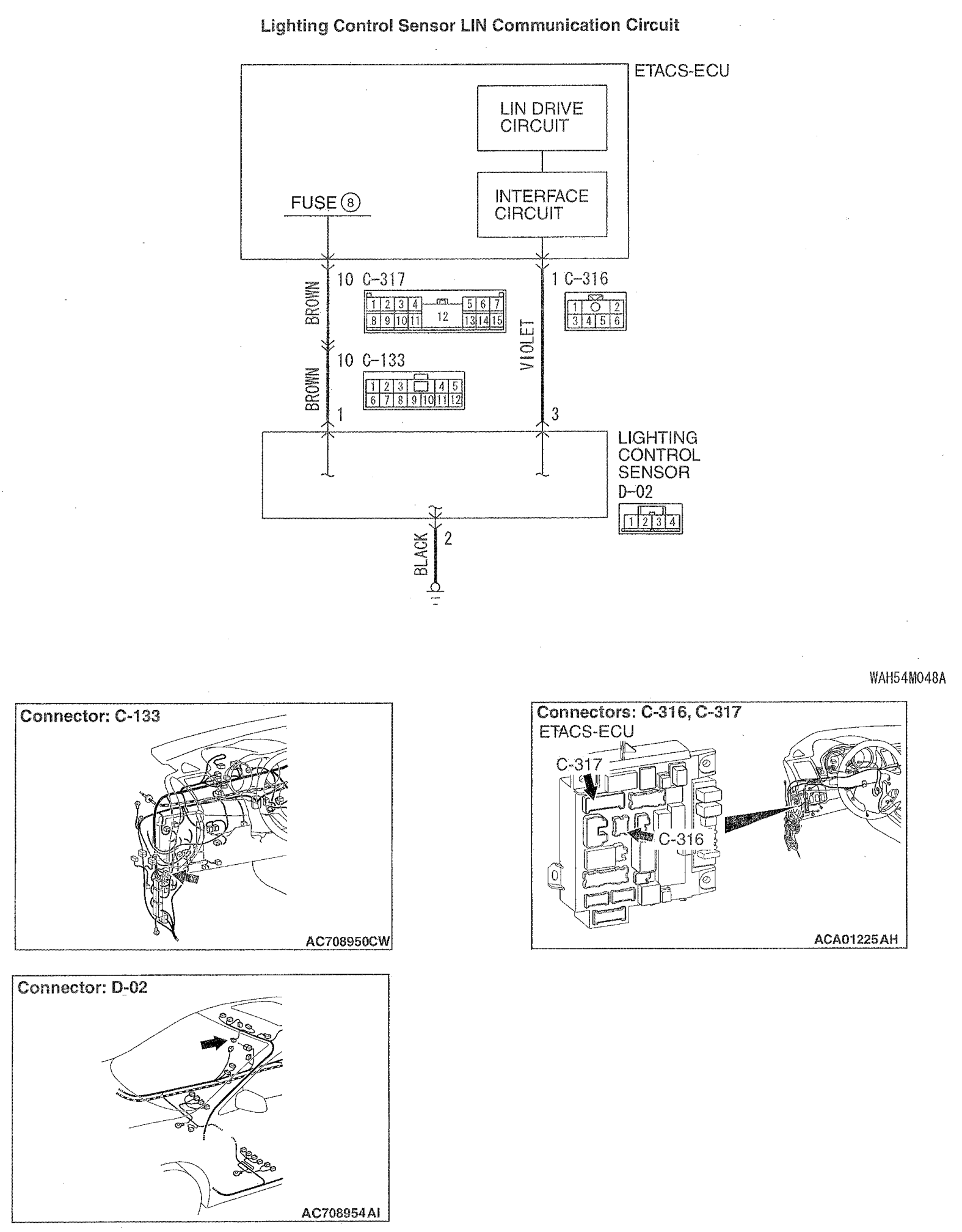

Fig 1: Lighting Control Sensor LIN Circuit Diagram
G00505457Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
