Manual Transaxle On-Vehicle Service - Lancer Evolution
>>
Transaxle Assembly
>>
Removal And Installation
>>
Notes
Removal And Installation: Notes

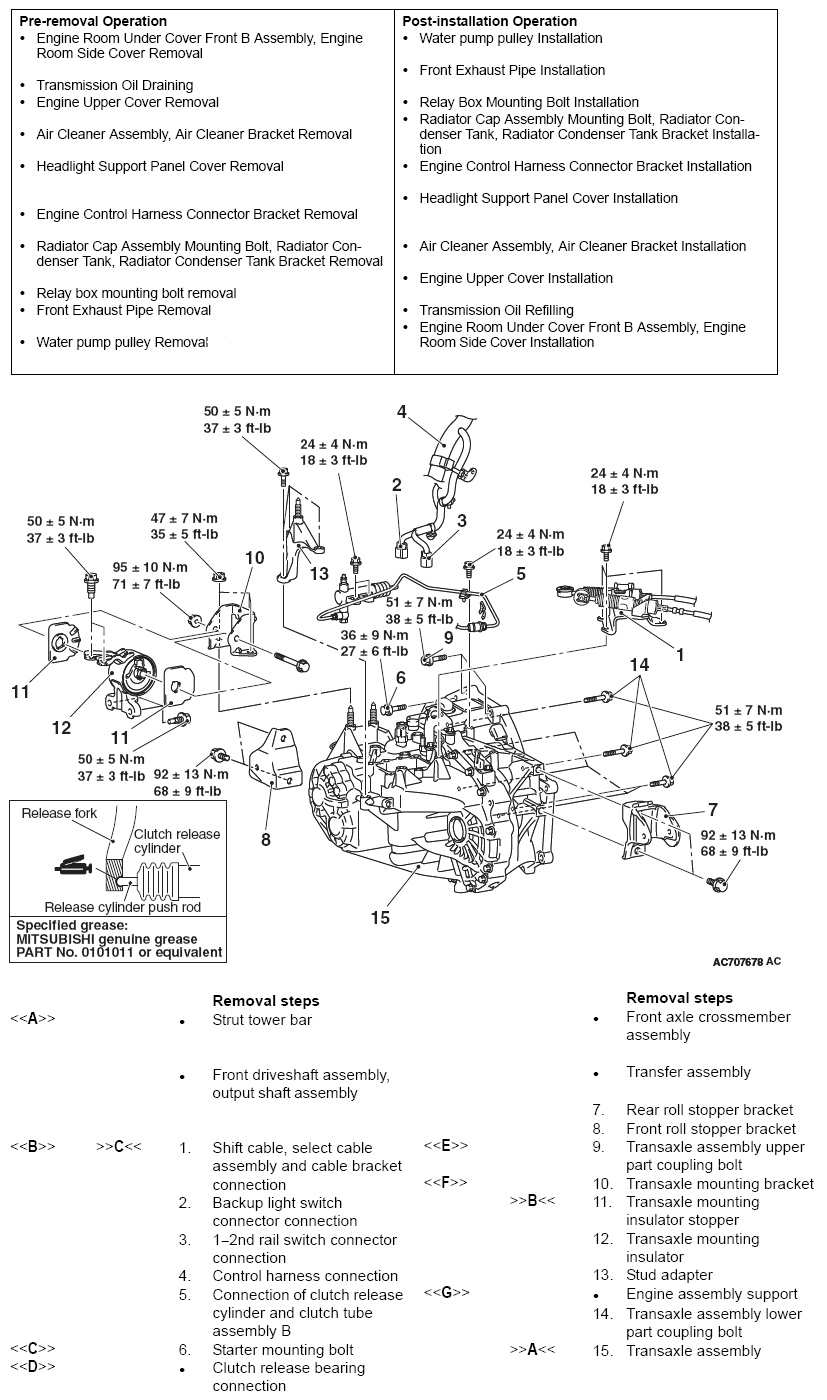

Fig 1: Removal/Installation Transaxle Assembly Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
