Removal And Installation: Notes

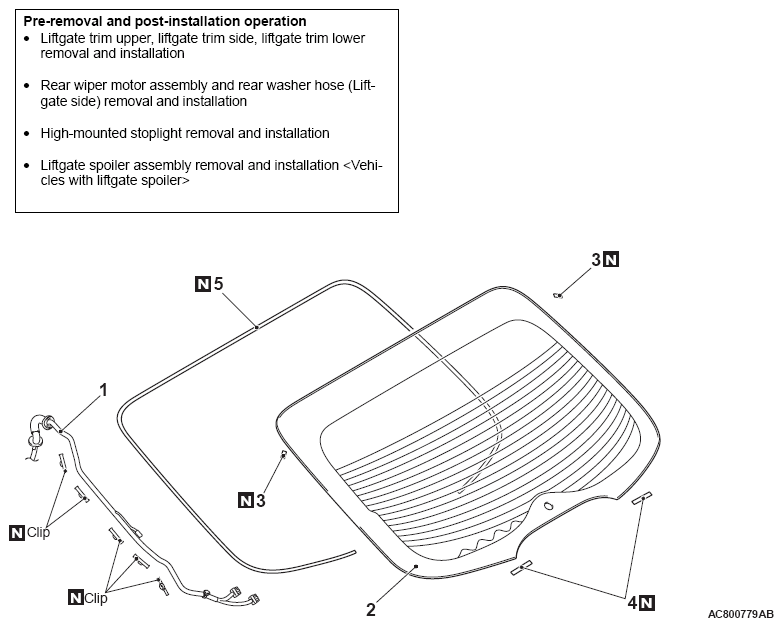

Fig 1: Removing/Installing Liftgate Window Glass Components - Lancer Sportback (1 Of 2)
G07034080Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

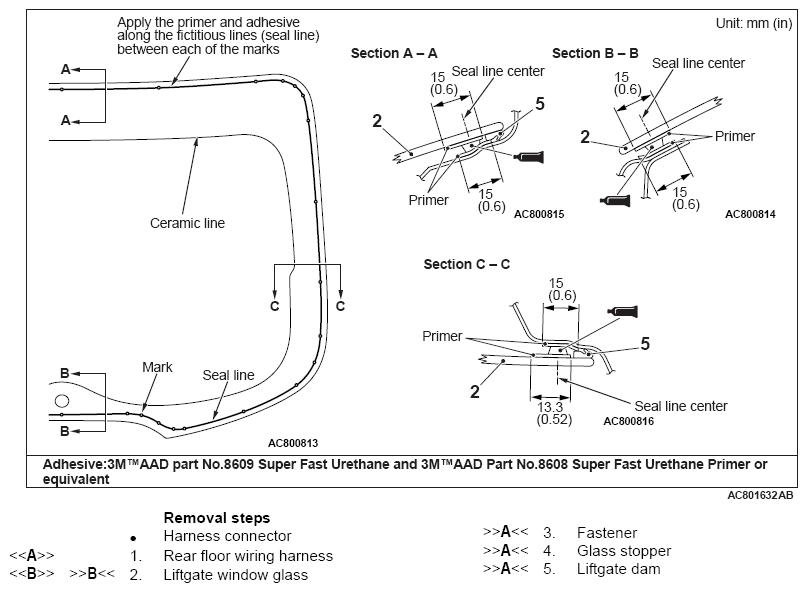

Fig 2: Removing/Installing Liftgate Window Glass Components - Lancer Sportback (2 Of 2)
G07034081Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
