Home
>>
Mitsubishi
>>
2011
>>
Lancer ES, 4D Hatchback, Standard
>>
Repair and Diagnosis
>>
Restraints
>>
Passive Restraints
>>
Interior - Except Lancer Evolution
>>
Floor Console Assembly
>>
Removal And Installation
>>
Notes
Removal And Installation: Notes

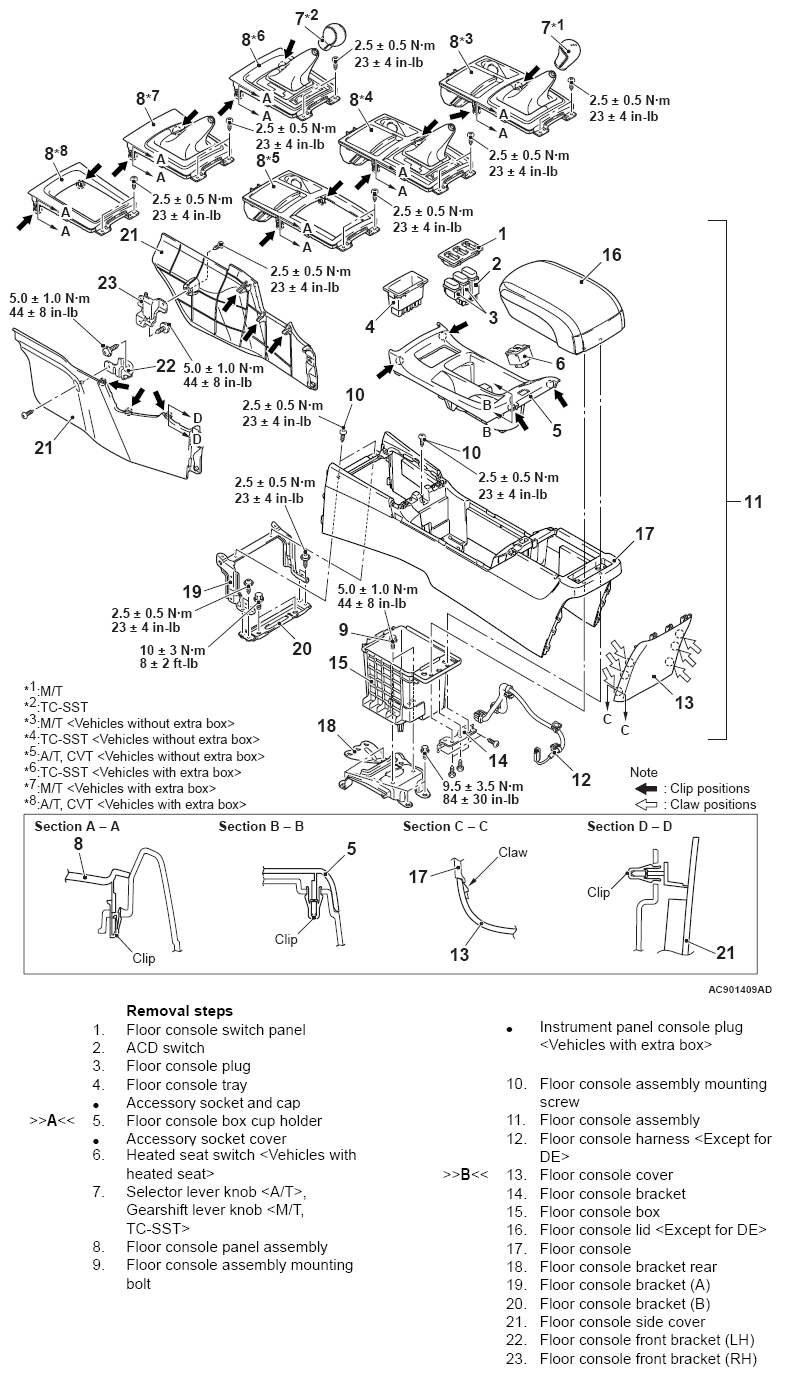

Fig 1: Removing/Installing Floor Console Assembly Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
