OEM Component Locations - Except Lancer Evolution: Sensor

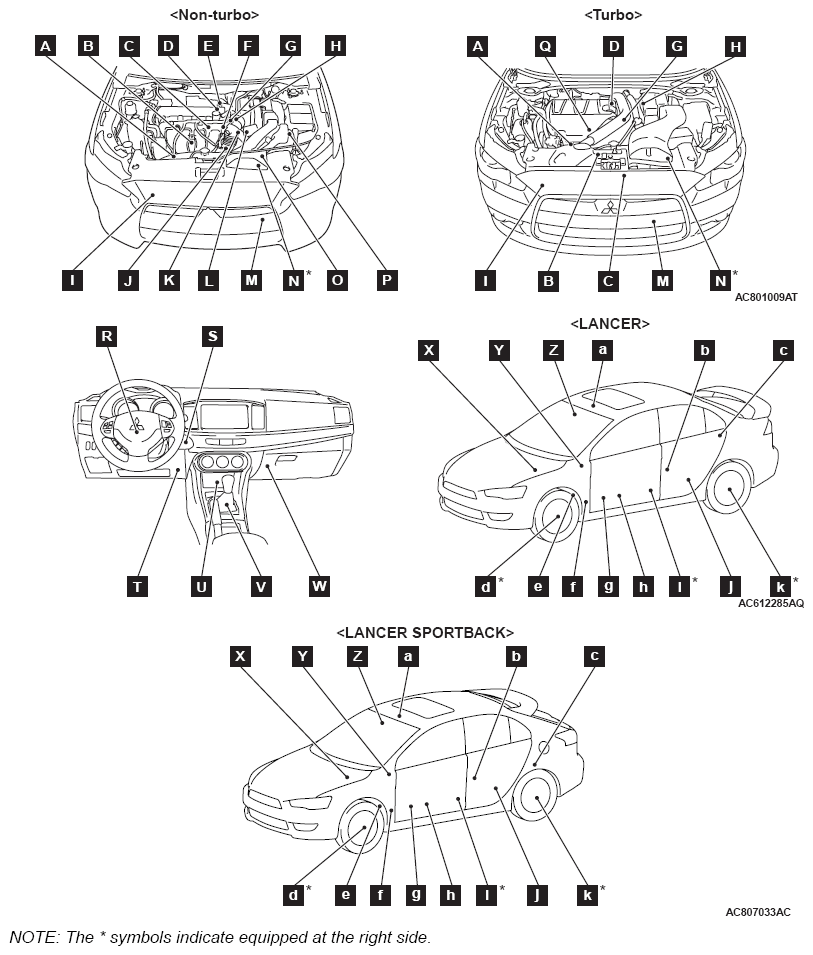

SENSOR REFERENCE CHART

Name	Symbol
A/C pressure sensor	I
Accelerator pedal position sensor	T
Air thermo sensor	W
Ambient air temperature sensor	M
Battery current sensor < Non-turbo >	P
Crankshaft position sensor	C
Engine coolant temperature sensor	G
Exhaust camshaft position sensor	D
Front impact sensor	N
Front wheel speed sensor	d
Fuel level sensor (sub) < AWD >	b

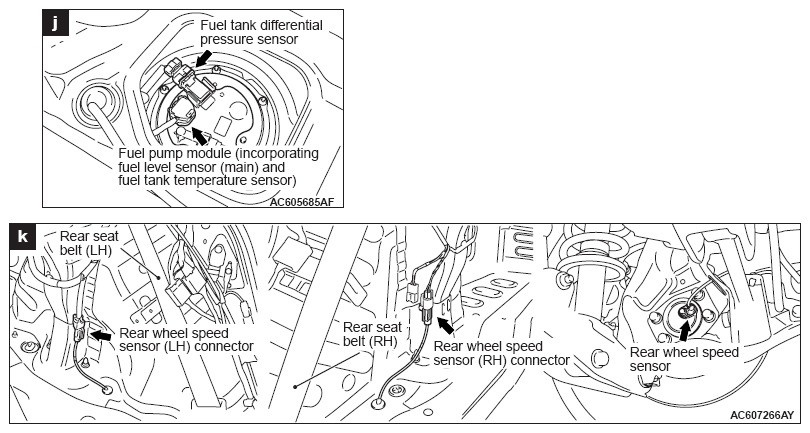

Fuel pump module (incorporating fuel level sensor (main) and fuel tank temperature sensor)	j
G and yaw rate sensor	U

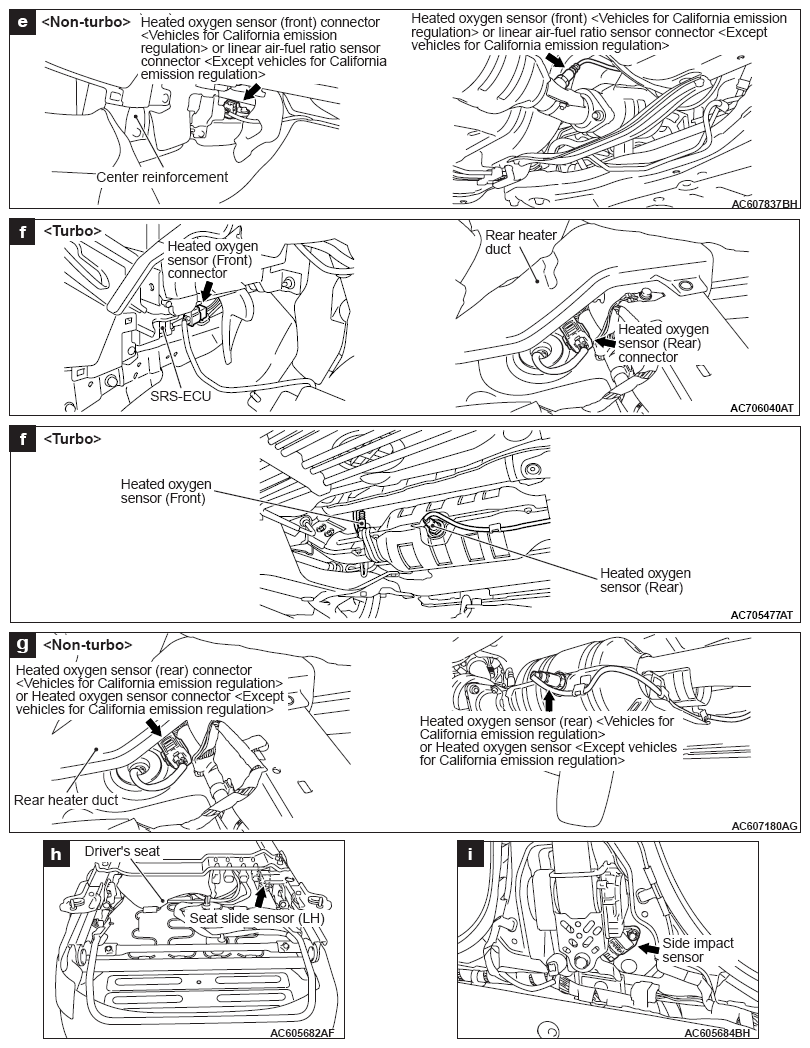

Heated oxygen sensor (front) < Turbo >	f
Heated oxygen sensor < Non-turbo (Except vehicles for California emission regulation) >	g
Heated oxygen sensor (front) < Non-turbo (Vehicles for California emission regulation) >	e
Heated oxygen sensor (rear) < Turbo >	f
Heated oxygen sensor (rear) < Non-turbo (Vehicles for California emission regulation) >	g
Intake camshaft position sensor < Non-turbo >	F

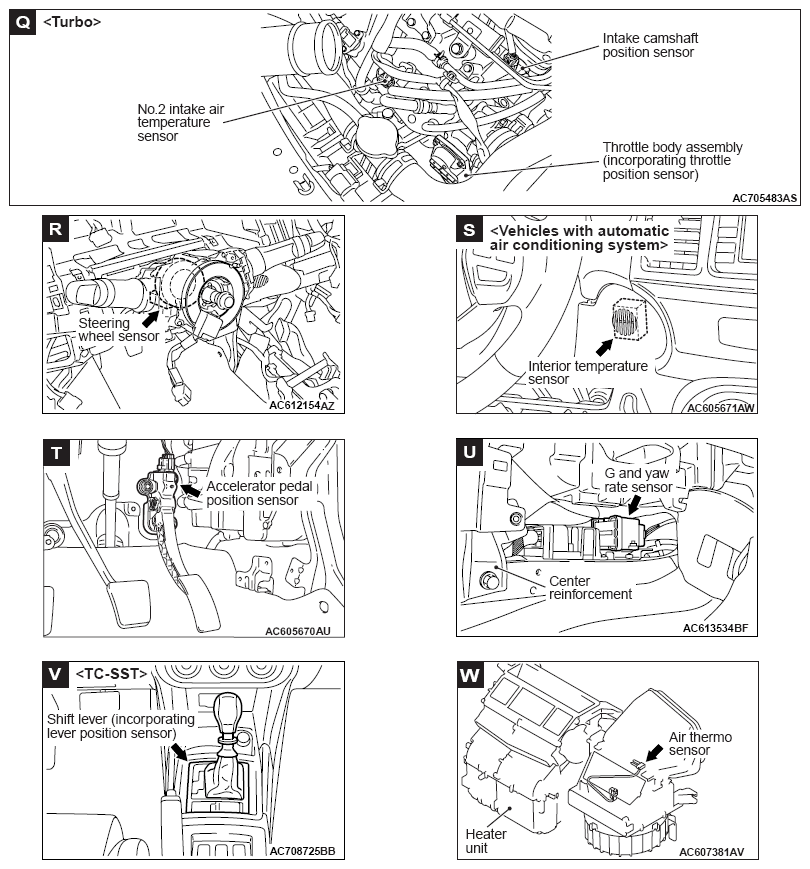

Intake camshaft position sensor < Turbo >	Q
Interior temperature sensor < Vehicles with automatic air conditioning system >	S
Knock sensor	B
Lighting control sensor < Vehicles with automatic light >	Z
Linear air-fuel ratio sensor < Non-turbo (Except vehicles for California emission regulation) >	e

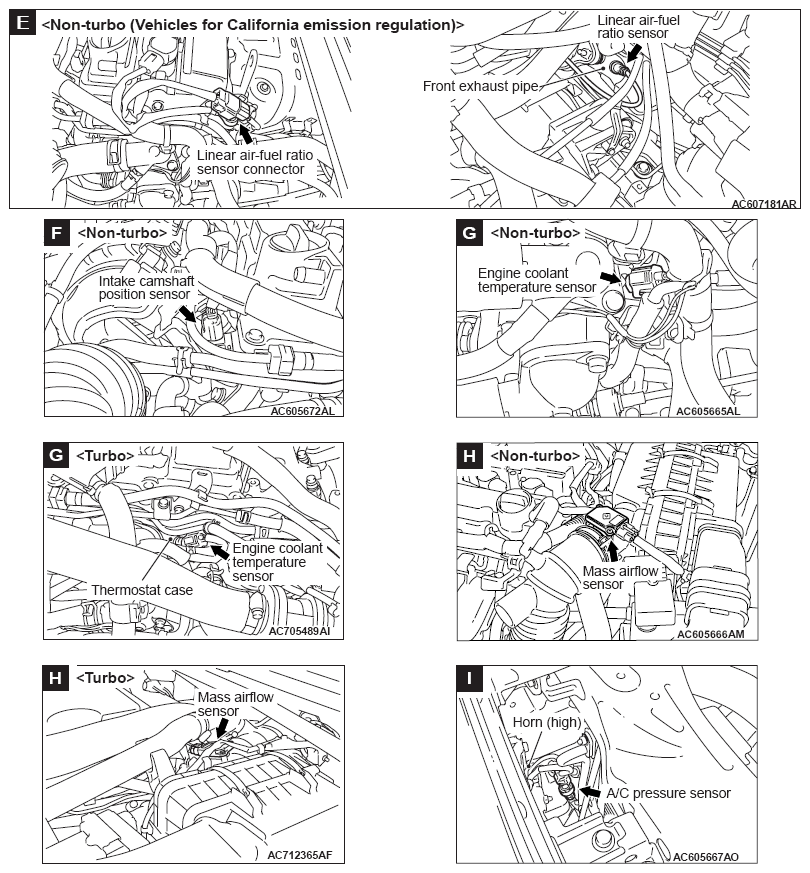

Linear air-fuel ratio sensor < Non-turbo (Vehicles for California emission regulation) >	E

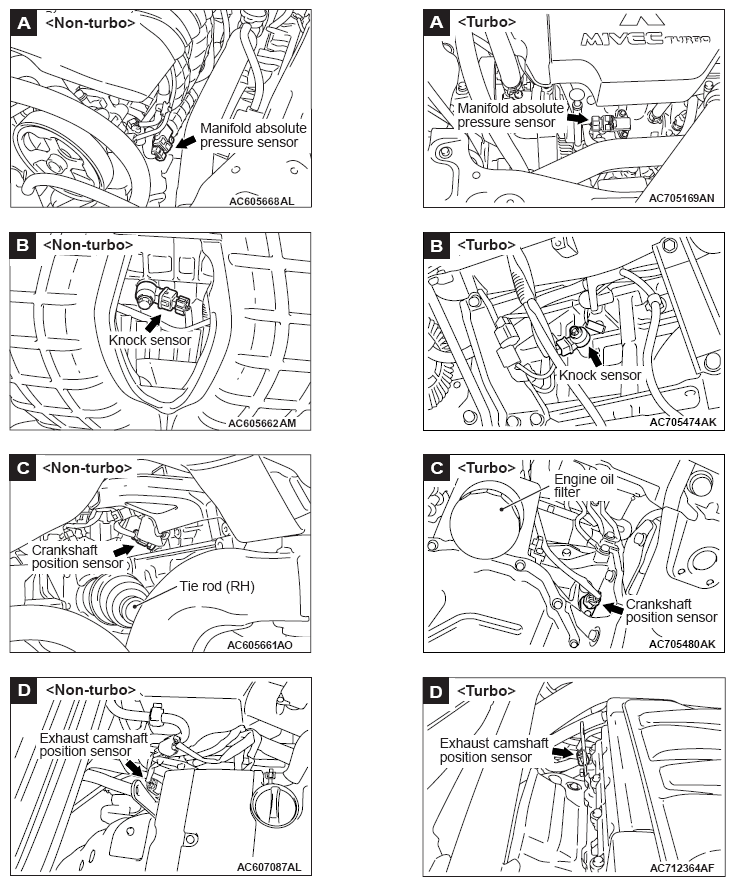

Manifold absolute pressure sensor	A
Mass airflow sensor	H
No. 2 intake air temperature sensor < Turbo >	Q
Pressure sensor < Turbo >	c
Primary pulley speed sensor < CVT >	O
Shift lever (incorporating lever position sensor) < TC-SST >	V
Rear wheel speed sensor	k
Seat slide sensor (LH)	h
Fuel tank differential pressure sensor	j
Secondary pulley speed sensor < CVT >	L
Side impact sensor	i
Steering wheel sensor	R
Theft-alarm sensor	a

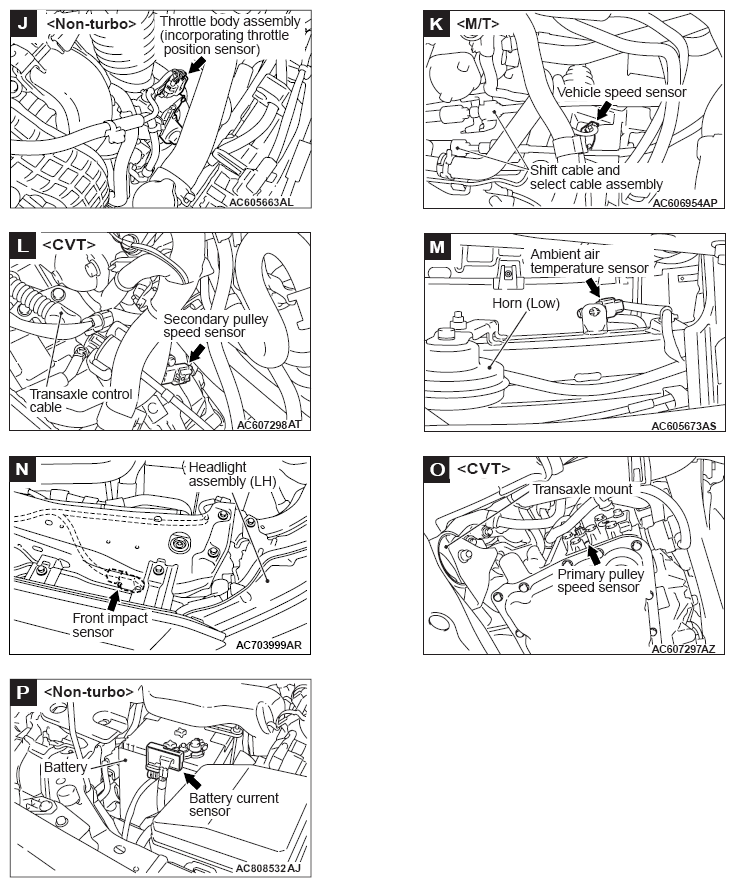

Throttle body assembly (incorporating throttle position sensor) < Non-turbo >	J
Throttle body assembly (incorporating throttle position sensor) < Turbo >	Q

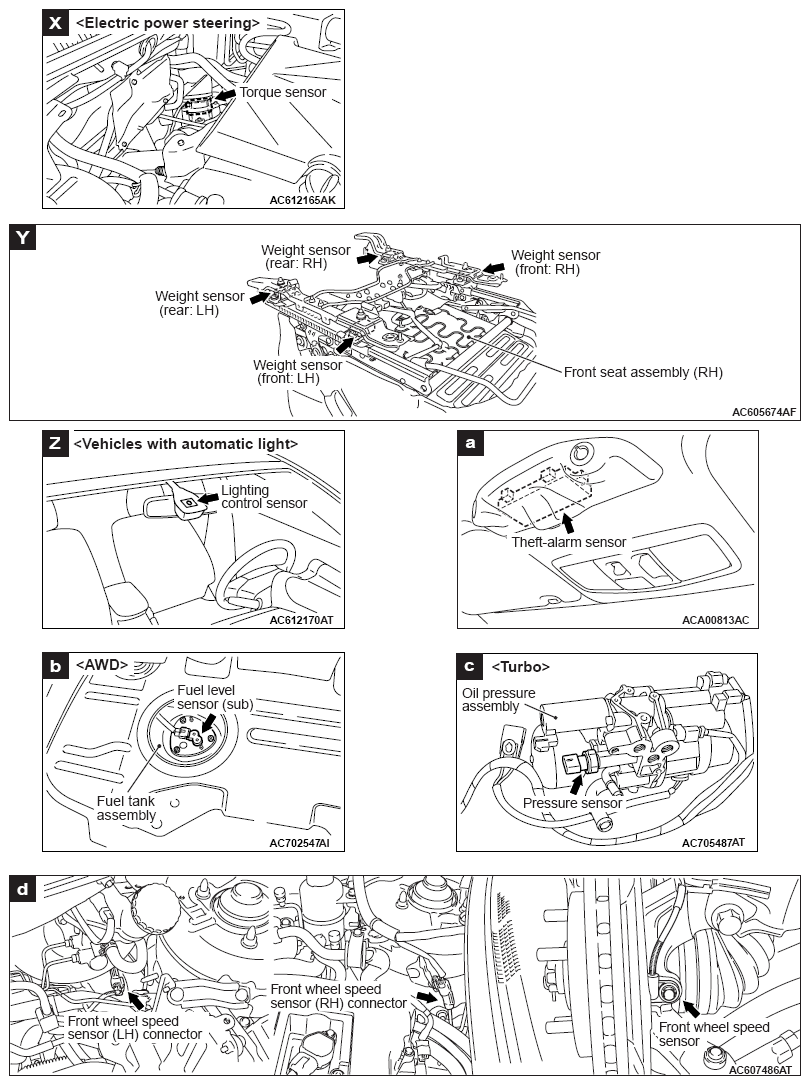

Torque sensor < Electric power steering >	X
Vehicle speed sensor < M/T >	K
Weight sensor	Y
