OEM Component Locations - Except Lancer Evolution: Relay

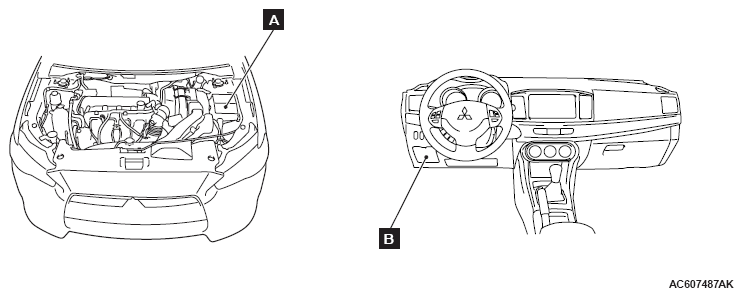

Fig 1: Identifying Relays - Turbo And Non-Turbo (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

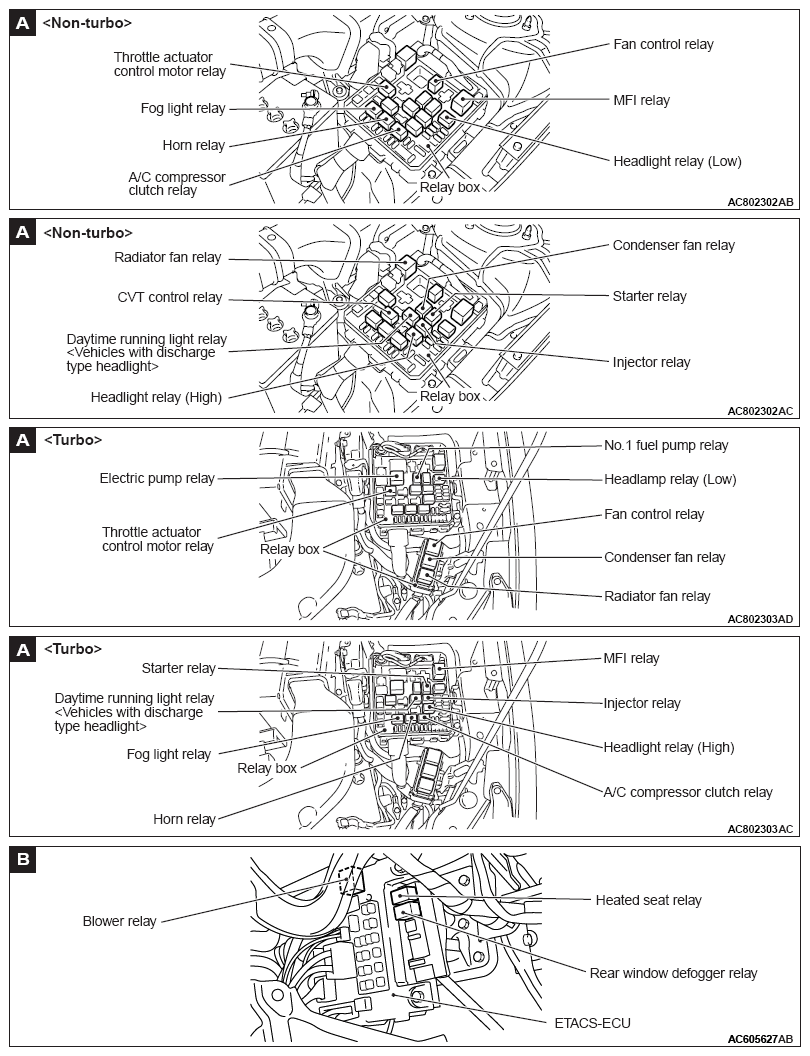

Fig 2: Identifying Relays - Turbo And Non-Turbo (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

RELAY REFERENCE CHART

Name	Symbol
A/C compressor clutch relay	A
Blower relay	B
Condenser fan relay	A
CVT control relay	A
Daytime running light relay < Vehicles with discharge type headlight >	A
Electric pump relay < Turbo >	A
Fan control relay	A
Fog light relay	A
Headlight relay (High)	A
Headlight relay (Low)	A
Heated seat relay	B
Horn relay	A
Injector relay	A
MFI relay	A
No. 1 fuel pump relay < Turbo >	A
Radiator fan relay	A
Rear window defogger relay	B
Starter relay	A
Throttle actuator control motor relay	A
