Disassembly And Assembly: Notes

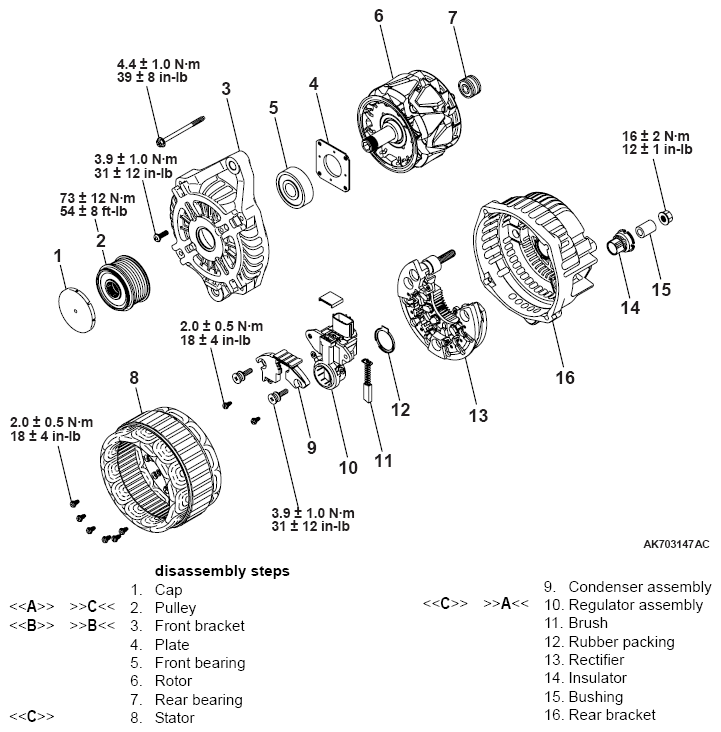

Fig 1: Exploded View Of Generator Assembly Components With Torque Specifications
G07033885Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
