Removal And Installation: Notes

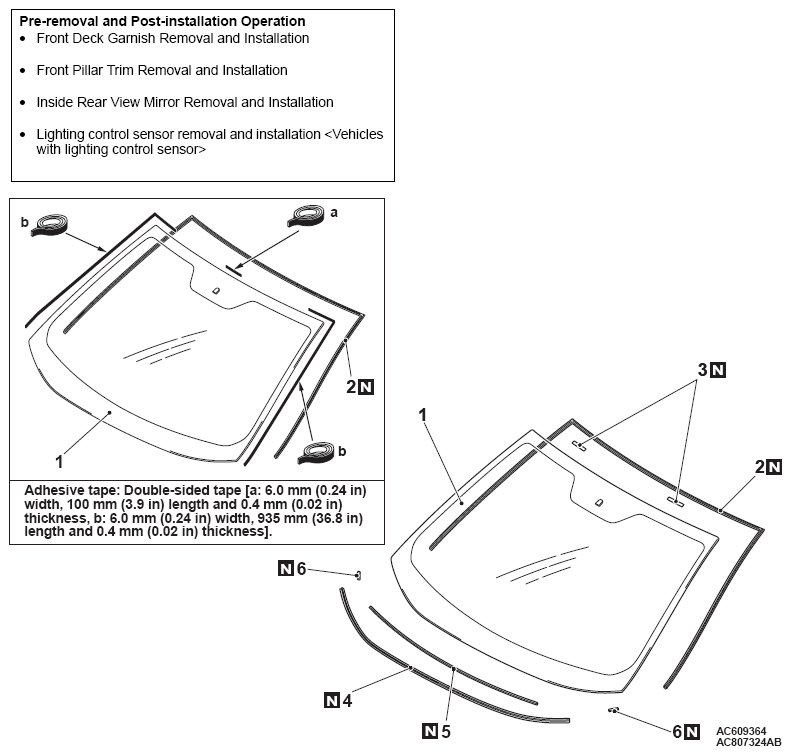

Fig 1: Removing/Installing Windshield Components (1 Of 2)
G07034064Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

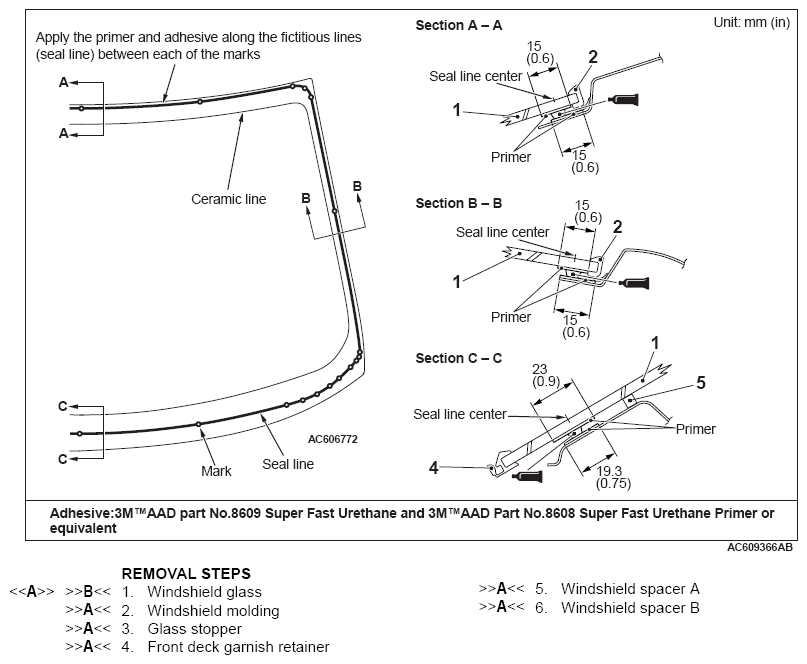

Fig 2: Removing/Installing Windshield Components (2 Of 2)
G07034065Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
