Removal And Installation: Notes

CAUTION:

Before removing the steering wheel and driver's air bag module assembly, refer to SERVICE PRECAUTIONS and DRIVER'S AIR BAG MODULE AND CLOCK SPRING < Except RALLIART > or DRIVER'S AIR BAG MODULE AND CLOCK SPRING < RALLIART > < Vehicles with WCM >.
After the installation, perform a calibration for the ASC-ECU to learn the steering wheel sensor neutral point (Refer to STEERING WHEEL SENSOR CALIBRATION ). < Vehicles with WCM and ASC >

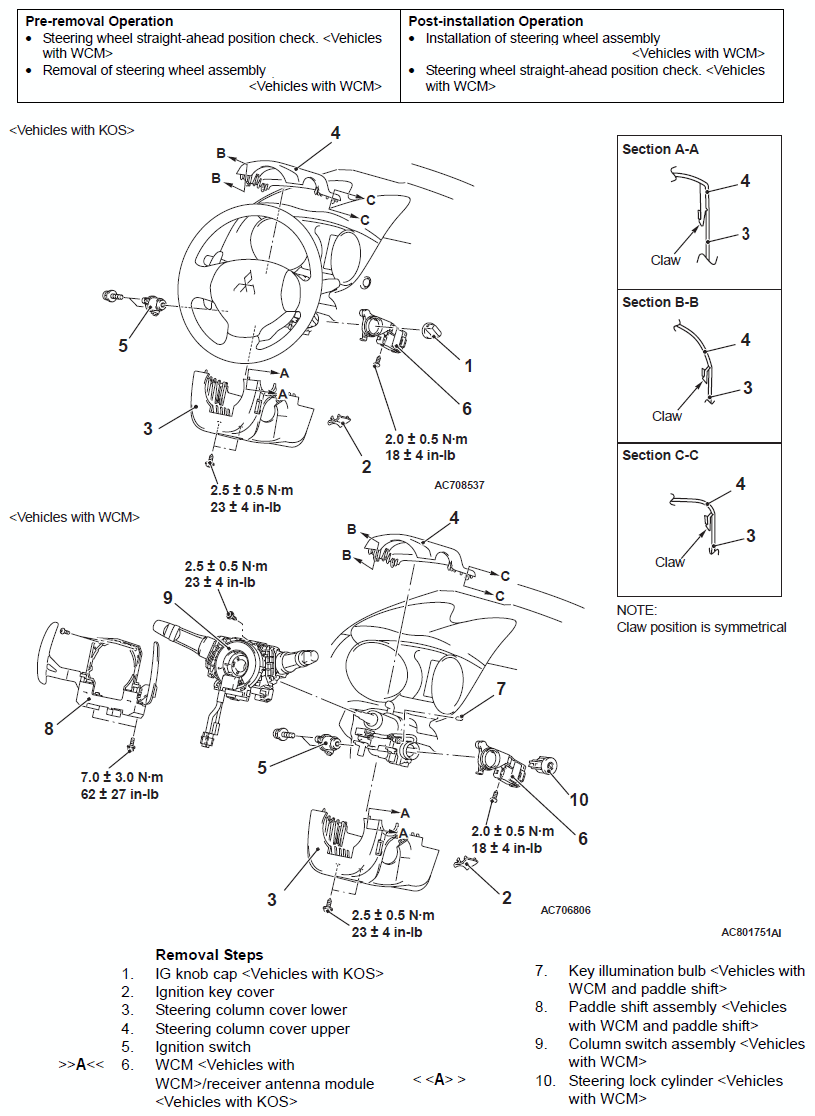

Fig 1: Removing/Installing Ignition Switch Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
