Home >> Mitsubishi >> 2011 >> Lancer ES, 4D Hatchback, Standard >> Repair and Diagnosis >> Accessories & Equipment >> Communication Devices >> Wireless Control Module (WCM) - Except Lancer Evolution >> WCM >> Removal And Installation >> Notes

Removal And Installation: Notes

CAUTION: When WCM has been replaced, all key ID codes should be registered, referring to the ID CODE REGISTRATION JUDGMENT TABLE  .

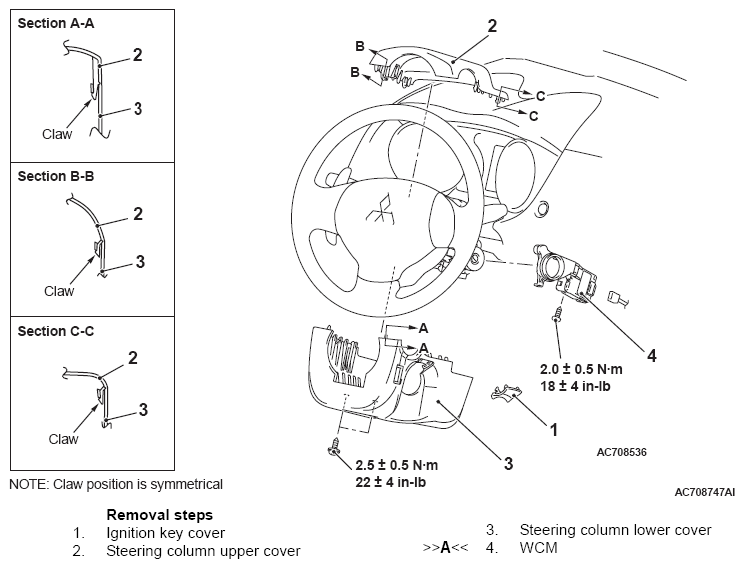

Fig 1: WCM Replacement Components With Torque Specifications
G07033088Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
