Disassembly And Assembly: Notes

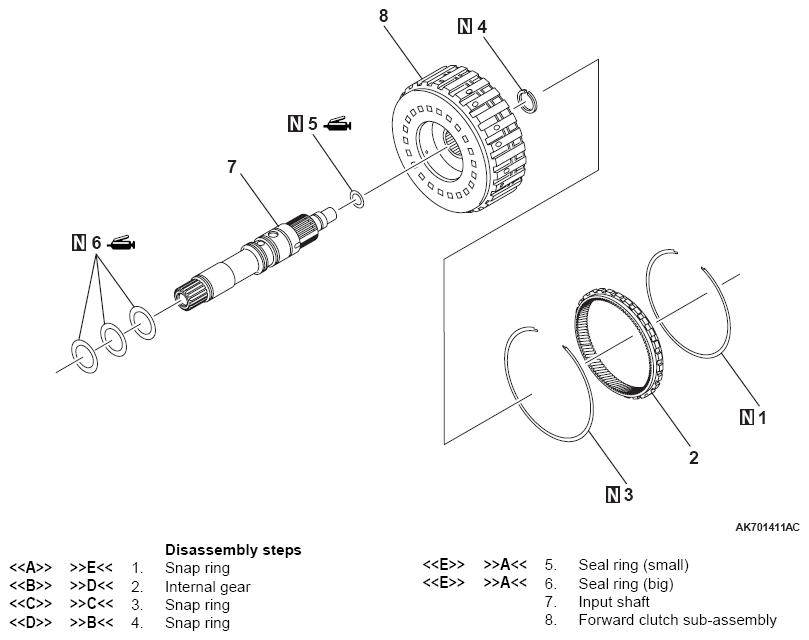

Fig 1: Identifying Forward Clutch Disassembly And Assembly
G07032026Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
