Home >> Mitsubishi >> 2011 >> Lancer DE, Standard >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Power Plant Mount - Except Lancer Evolution >> Engine Mounting >> Removal And Installation (2.0L Engine Turbo) >> Notes

Removal And Installation (2.0L Engine Turbo): Notes

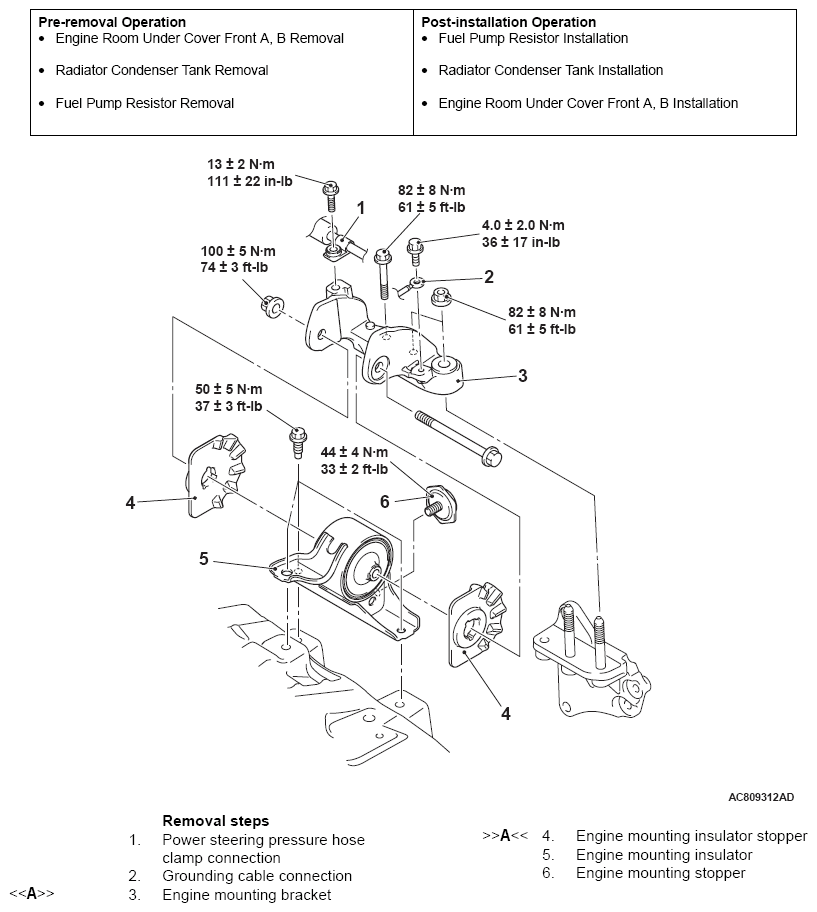

Fig 1: Exploded View Of Engine Mounting With Torque Specifications (2.0L Engine Turbo)

G07032208

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
