Removal And Installation (2.0L Engine Non-Turbo, 2.4L Engine): Notes

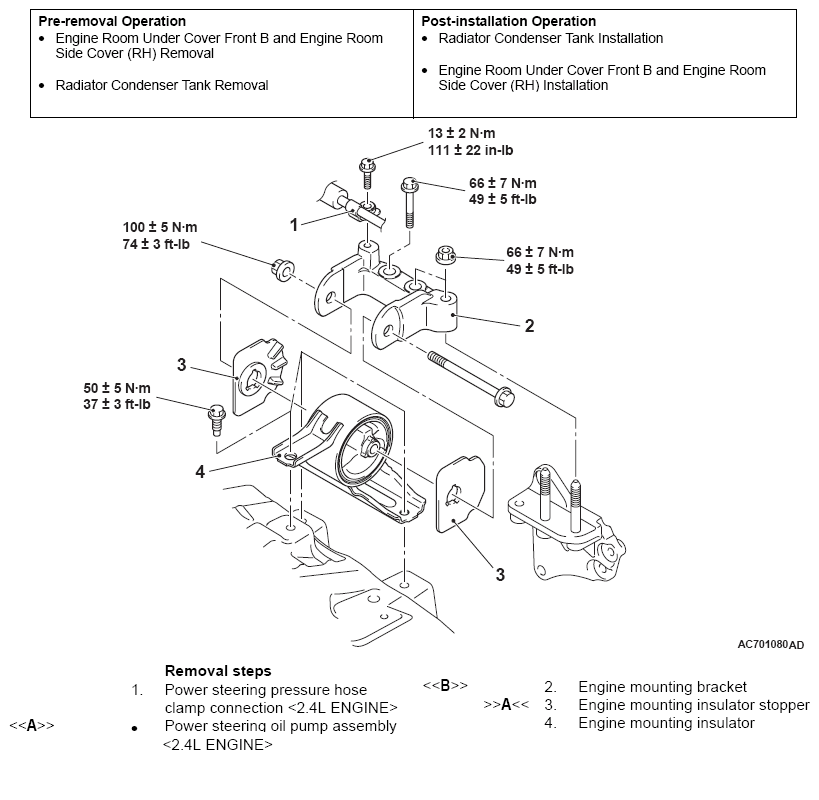

Fig 1: Exploded View Of Engine Mounting With Torque Specifications (2.0L Non-Turbo & 2.4L)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
