Removal And Installation: Notes

WARNING: Be careful not to subject the SRS-ECU to any shocks during removal and installation of the key interlock cable.

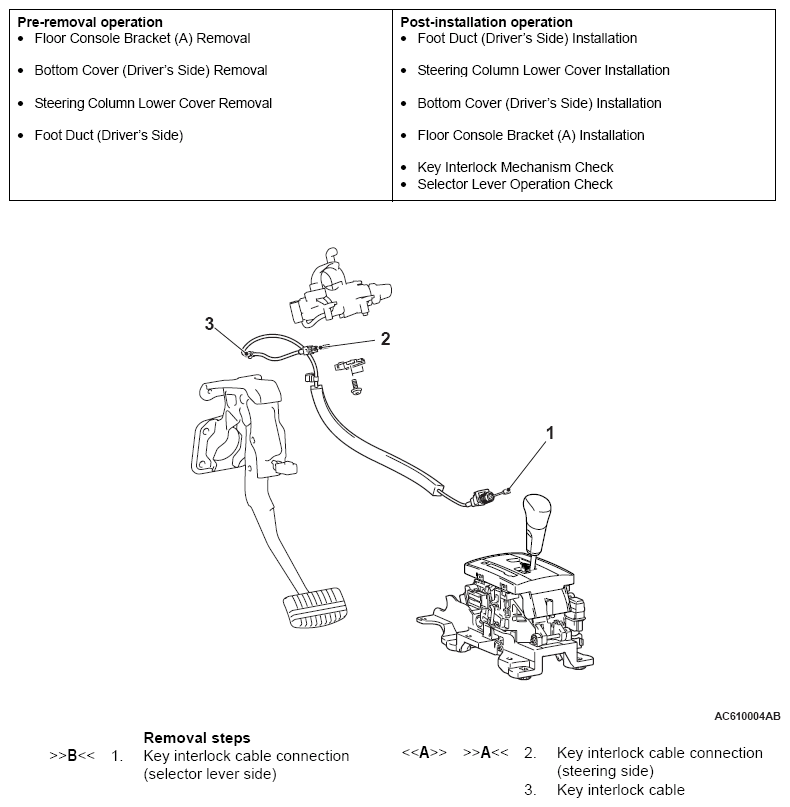

Fig 1: Removing/Installing CVT Key Interlock And Shift Lock Mechanisms
G07029366Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
