Reduction Gear Sub-Assembly: Assembly: Notes

CAUTION: The reduction gear sub-assembly can only be assembled, not disassembled.

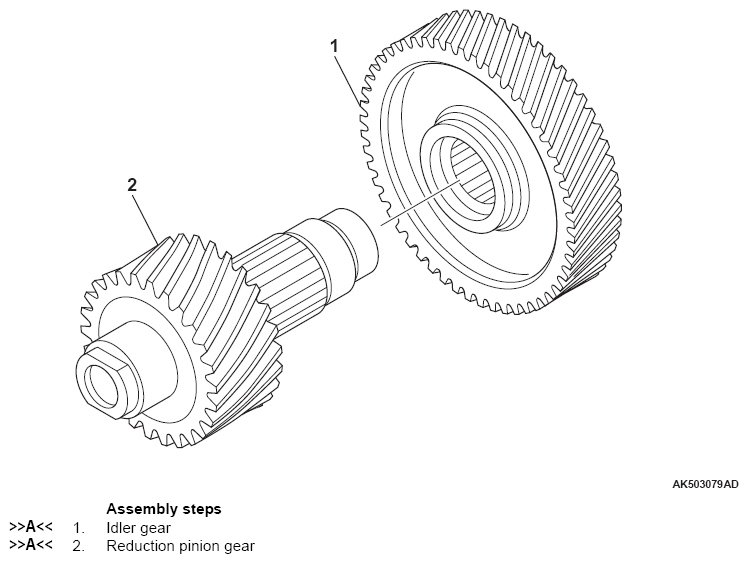

Fig 1: Identifying Reduction Gear Sub-Assembly
G07032045Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required special tools:
