Differential Sub-Assembly: Assembly: Notes

CAUTION: The differential sub-assembly can only be assembled, not disassembled.

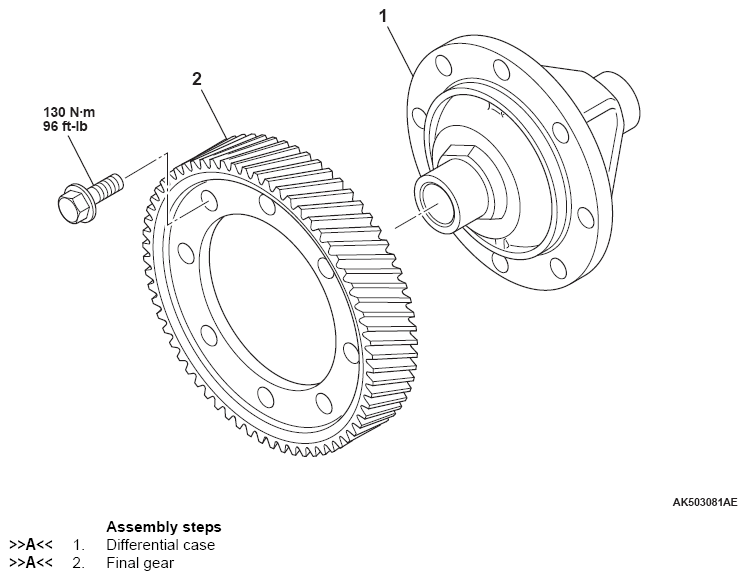

Fig 1: Differential Sub-Assembly With Torque Specification
G07032053Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
