Removal And Installation: Notes

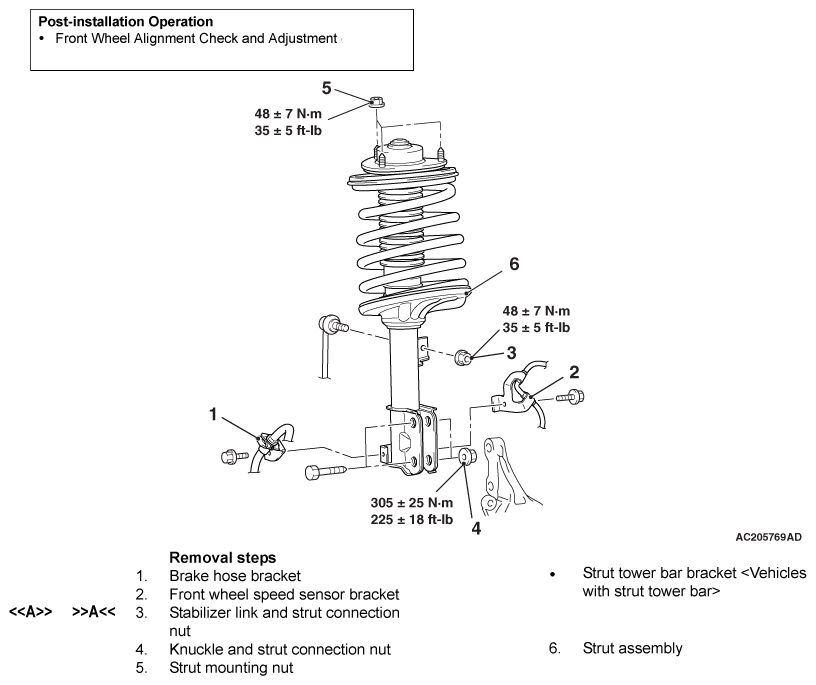

Fig 1: Strut Assembly Components With Torque Specification

G06716462

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
