Disassembly And Assembly: Notes

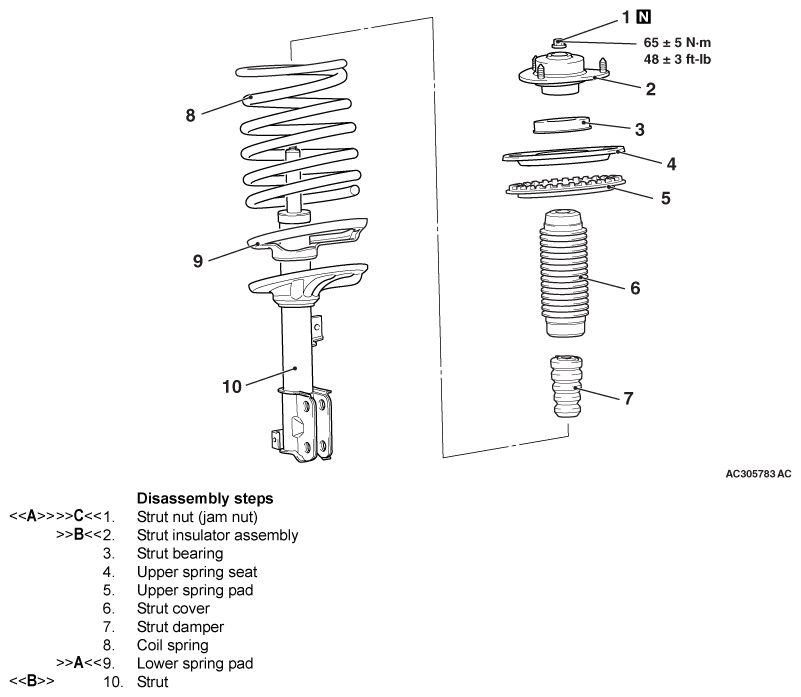

Fig 1: Disassembling View Of Strut Assembly With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB991680: Wrench Set
  • MB991681: Wrench
  • MB991682: Socket
• MB991832: Spring Compressor Set
  • MB991793: Spring Compressor
  • MB991794: Upper Plate
  • MB991795: Attachment A
  • MB991829: Arm Bracket
  • MB991830: Fixture
