Removal And Installation <2.4L Engine>: Notes

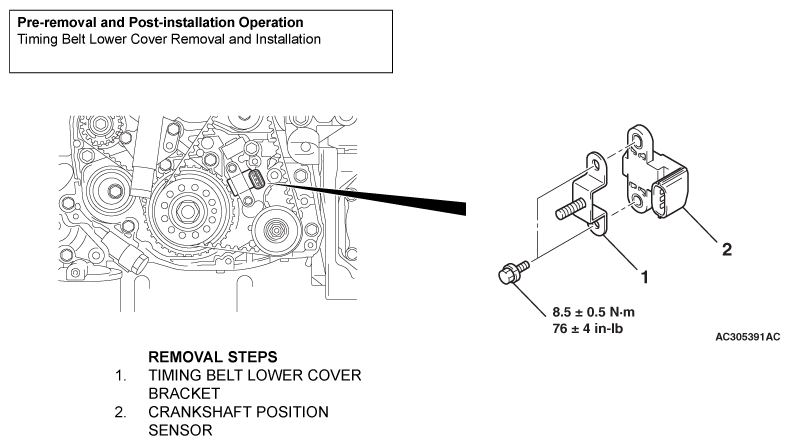

Fig 1: Exploded View Of Crankshaft Position Sensor (2.4L Engine) With Torque Specifications

G06717038

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
