Home >> Mitsubishi >> 2011 >> Galant ES >> Repair and Diagnosis >> Engine Performance >> System >> Emission Control System >> Exhaust Gas RECIRCULATION (EGR) System >> Removal And Installation <3.8L Engine> >> Notes

Removal And Installation <3.8L Engine>: Notes

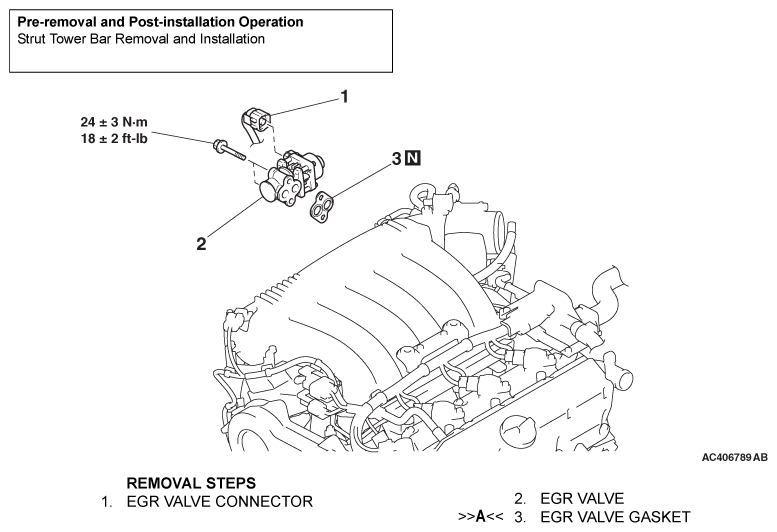

Fig 1: Removal/Installation EGR Valve (3.8L Engine) With Torque Specifications
G06717586Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
