Removal And Installation: Notes

WARNING:
CAUTION: When the steering lock cylinder is replaced, register the encrypted code. Refer to ENCRYPTED CODE REGISTRATION CRITERIA TABLE  .

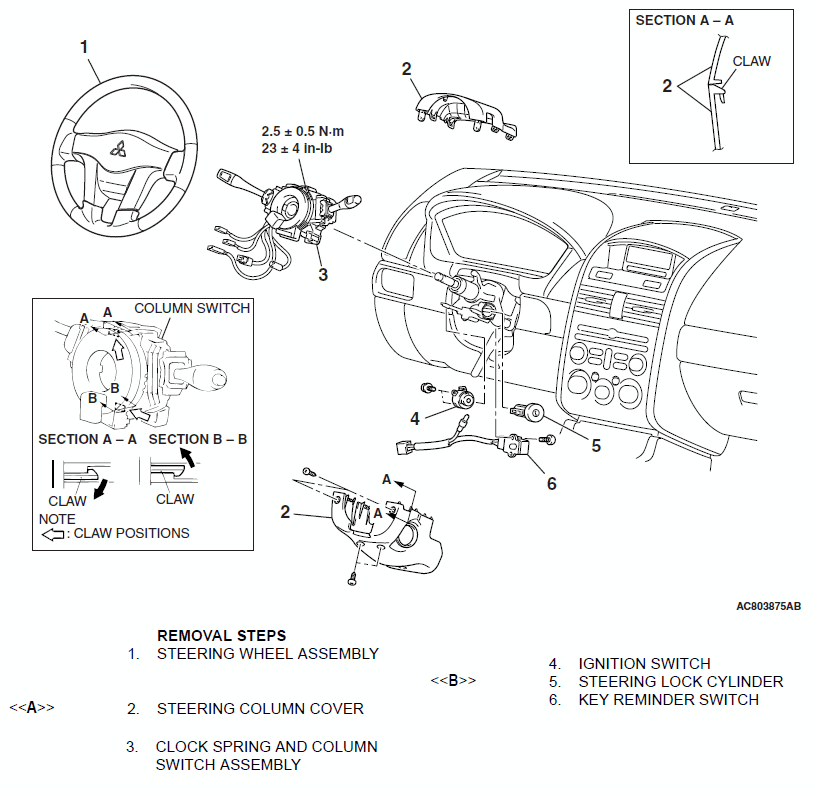

Fig 1: Removal/Installation Of Ignition Switch With Torque Specifications
G06718011Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
