Disassembly And Assembly: Notes

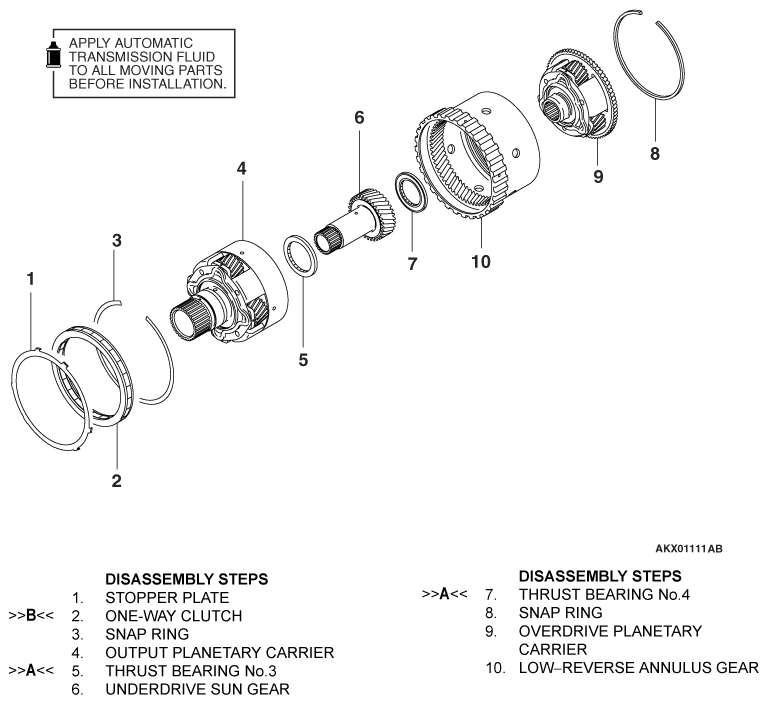

Fig 1: Planetary Gear Components

G06699624

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
