Home >> Mitsubishi >> 2011 >> Endeavor SE, FWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle Overhaul >> Differential >> Disassembly And Assembly >> Notes

Disassembly And Assembly: Notes

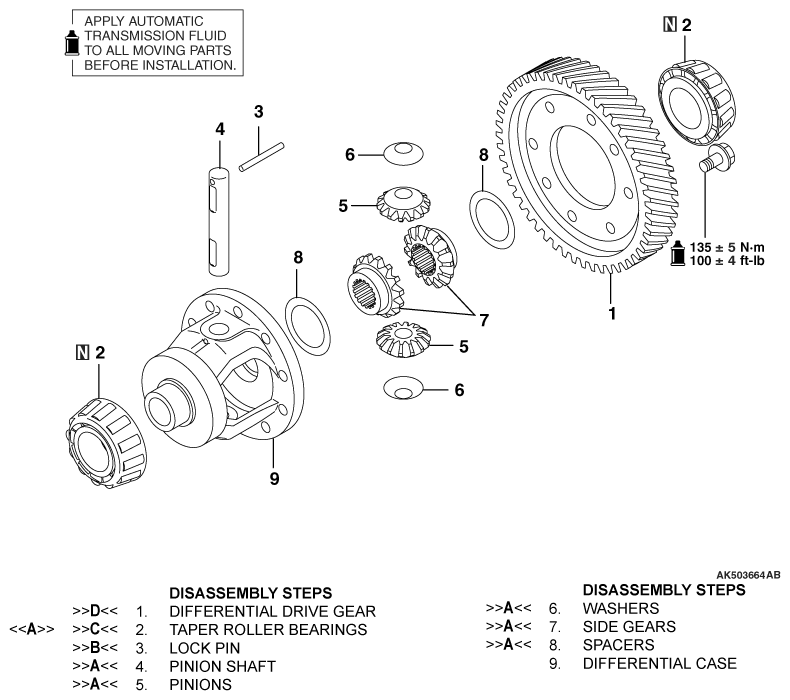

Fig 1: Differential Components With Torque Specification
G06699635Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
