Removal And Installation: Notes

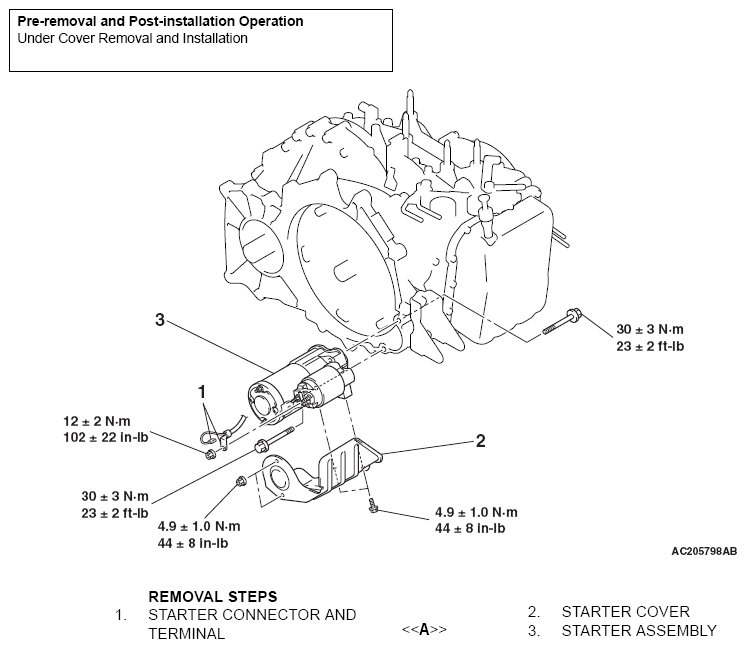

Fig 1: Starter Motor Components With Torque Specifications

G06699257

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
